Desktop Dip Coater With Variable Speed (1-200 mm/min)
PTL-MM01 Dip Coater pulls the sample vertically by pulling the wire. The sample is dipped in the liquid film material for a period of time and then pulled out, so that a film of a certain thickness grows on the surface of the sample. PTL-MM01 dip coater adopts a single-board computer to control the pulling speed of the wire to make the lifter run smoothly and accurately.
Send Email Details -
Millimeter Grade Programmable Dip Coater (1-200 mm/min)
PTL-MM02 Program-Controlled Dip Coater pulls the sample vertically by pulling the wire. PTL-MM02 programmable dip coater adopts PLC program control to set and adjust the the pulling speed, the dipping time of the sample in the liquid coating material, the speed of the sample entering the liquid, the cycle times of the sample entering and leaving the liquid coating material as well as the drying time of the sample.
Send Email Details -
PLC Controlled Precision Dip Coater (1-200 mm/min)
PTL-MM02-200 Program-Controlled Vertical Dip Coater is a precision equipment specially designed for the study of liquid growing films. The film is grown by vertically pulling the sample that is dipped in liquid coating material. Larger samples can be coated, and the size of samples can reach 310mm×260mm with thickness of 1mm-5mm.
Send Email Details -
PLC Controlled Precision Dip Coater (1-500 mm/min)
PTL-MM02-500 Program-Controlled Vertical Dip Coater is a precision equipment specially designed for the study of liquid growing films of substrates. The film is grown by vertically pulling the sample that is dipped in liquid coating material. The pulling speed, the dipping time, the speed of the sample entering the liquid, the cycle times of the sample coating, and the drying time of the sample can be controlled by the control system.
Send Email Details -
Programmable Dip Coater ( Bridgman ) With Atmosphere Control
PTL-HT High Temperature Dip Coater is widely used in the study of various high-temperature pulling and coating. The heating furnace tube can provide a pulling and coating temperature of up to 1000℃. PTL-HT high temperature dip coater is especially suitable for materials that grow thin films at high temperatures, such as ceramic thin films, crystal thin films, battery material thin films, and special nano thin films.
Send Email Details -
6 Position Programmable Dip Coater With Speed 1-400 mm/min
PTL-6P Six-Position Dip Coater can pull one sample at a time, and can make the sample rotate counterclockwise through program control. The sample is pulled out for drying after being dipped in the charging beakers for a certain period of time. The dipping time and drying time can be set through programming. The six charging beakers of PTL-6P six-station dip coater can be loaded with the same coating material or different coating materials separately.
Send Email Details -
6 Position Programmable Dip Coater With Bottom Heating
PTL-6PB Six-Position Dip Coater is equipped with six temperature-controlled meter, which can heat the charging beaker during film coating process. The six beakers can be heated with the same temperature or different temperatures, depending on the coating materials loaded in the beakers. This machine is suitable for liquid coating materials or solid coating materials that can be melted into flowing liquid after heating.
Send Email Details -
5×8 Position PLC Control Precision Dip Coater
PTL-MM02-8P Dip Coater is a precision equipment specially designed for the study of liquid growing films. PTL-MM02-8P dip coater adopts high precision speed control system and the parameter input terminal of touch screen to realize automatic control over pulling and coating of 5 samples at the same time.
Send Email Details -

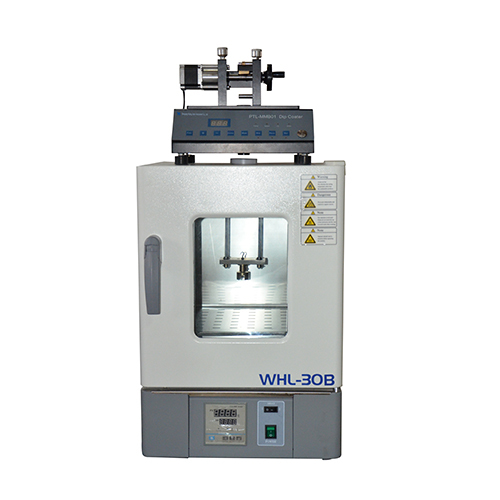

Dip Coater (1-200 mm/min) With Drying Oven Up To 100ºC
PTL-MMB01 Thermostatic Dip Coater is specially designed for the study of liquid epitaxial film. It adopts a button-type control panel and a single-board computer to control the pulling speed of the wire to make the lifter run smoothly and accurately. The machine can also be equipped with a thermostatic oven with a temperature of up to 100 ℃, so that the film growing process can be carried out at a constant temperature.
Send Email Details
