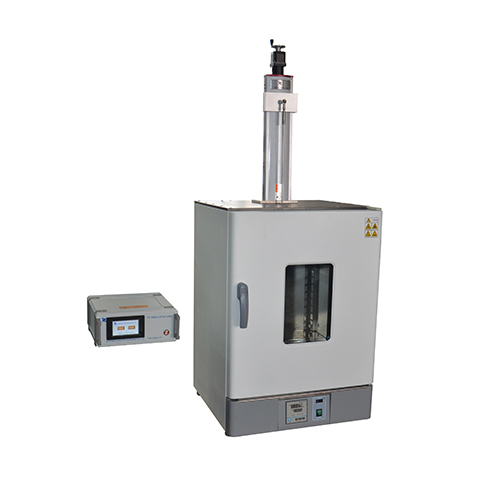

Dip Coater With 124 L Temperature Chamber For Large Substrate
PTL-MMB02-200 Thermostatic Vertical Dip Coater is a precision equipment specially designed for the study of liquid growing films. The film is grown by vertically pulling the sample that is dipped in liquid coating material under thermostatic field. The machine adopts high precision speed control system and the parameter input terminal of touch screen to realize automatic control over the whole pulling and coating process.
- Shenyang Kejing
- Shenyang, China
- 44 working days
- 50 sets
- Information
Product Introduction
The PTL-MMB02-200 Constant-Temperature Vertical Dip Coater is a millimeter-level precision lifting device specially designed by our company for research institutions to conduct liquid-phase thin film growth under constant temperature conditions. It is mainly used in the field of thin film material preparation.
This model adopts a PLC program control system, in which a high-precision stepper motor drives a screw transmission mechanism to achieve stable and accurate vertical movement. Through the vertical dip-coating method, the sample is immersed in the liquid-phase film material for a specific duration and then lifted at a uniform speed. After constant-temperature drying, a thin film of uniform thickness is formed on the surface of the sample.
The equipment features a compact structure, easy operation, and convenient mobility, making it widely used in universities, research institutes, and enterprise laboratories.
Main Features
· Equipped with a 4.3-inch color touch screen, the control interface is simple and intuitive, making it suitable for beginners.
· This series features a compact design with high cost performance, saving valuable laboratory space.
· Controlled by a PLC program with a high-precision stepper motor drive, ensuring smooth operation and high accuracy.
Technical Parameters
Product Name | PTL-MMB02-200 Thermostatic Vertical Dip Coater | |
Product Model | PTL-MMB02-200 | |
| Installation Requirements | 1. Power supply: Single-phase AC220V 50/60Hz. A 16A circuit breaker must be installed at the front end. 2. Site environment: To be used at a temperature of 25℃ ±15℃ and humidity of 55%Rh ±10%Rh. | |
Main Parameters (Specification) | 1. Rated power of lifting main unit: 50W 2. Operating voltage of lifting main unit: DC24V 3.75A (Standard: AC100~240V power adapter) 3. Type: Programmable control – Constant temperature type (with heating chamber) 4. Drive motor: High-precision stepper motor 5. Speed setting range: 1~200 mm/min (increment/decrement: 1 mm) 6. Immersion dwell time: 1~999 s (increment/decrement: 1 s) 7. Drying dwell time: 1~999 s (increment/decrement: 1 s) 8. Lifting stroke: 1~270 mm (increment/decrement: 1 mm) 9. Lifting cycles: 1~20 times 10. Sample substrate size: Max: (L) 400 mm × (W) 230 mm × (T) 1~10 mm 11. Effective immersion depth: ≤200 mm 12. Maximum lifting load: ≤5.5 kg 13. Display & control: 4.3-inch color touchscreen | |

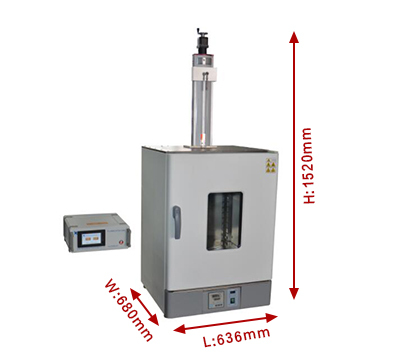

14.Product specifications:： · Dimension: 636mm×680mm×1520mm · Weight：≈75 kg (including the constant temperature chamber) |
| |
15. Constant Temperature Chamber Specifications
· Measured temperature (PV): 4-digit upper display · Set temperature (SV): 4-digit lower display
| ||
Standard Accessories
| No. | Name | Quantity | Image |
| 1 | Control Box | 1 pcs | - |
| 2 | Liquid Container | 1 pcs | - |
Warranty
One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
