Vacuum Arc Melting System With Vacuum Casting Mold 6mm Dia.
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 10 working days
Supply capacity 50 sets

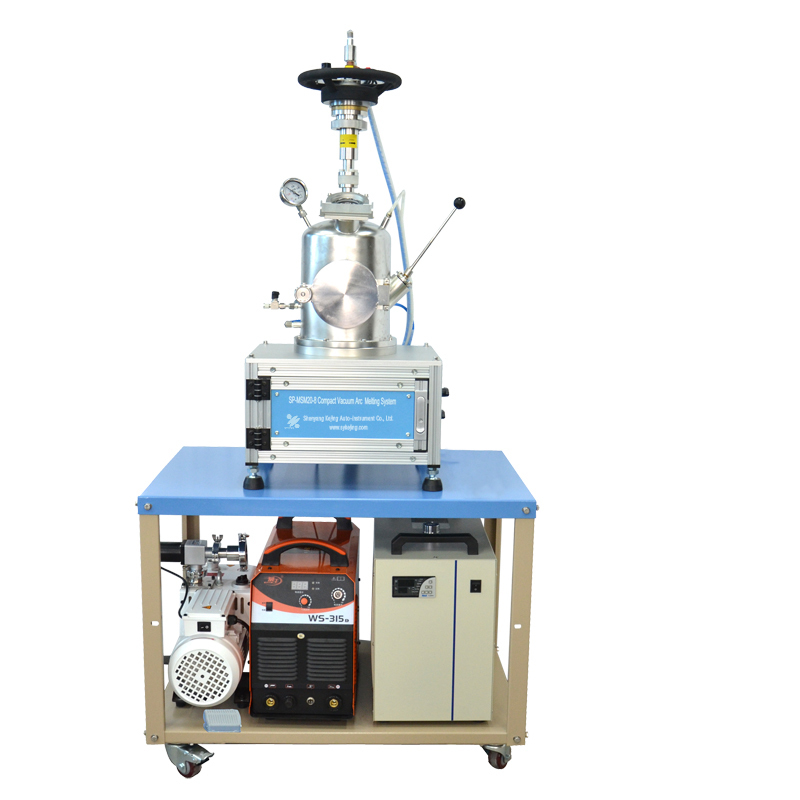

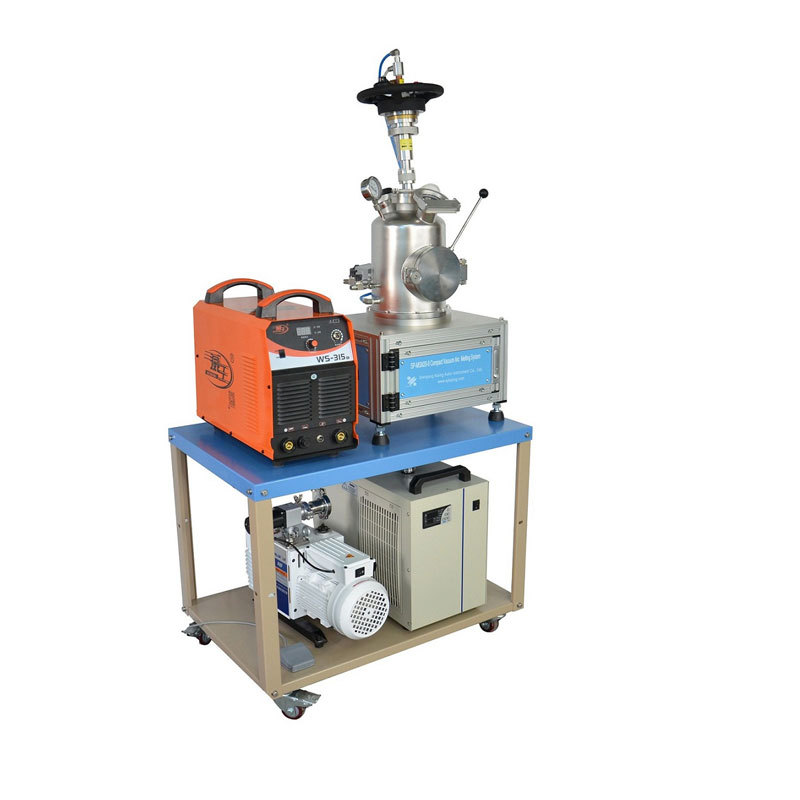

MSM20-8 (Non-Consumable) Compact Metal Melting and Suction Coating Furnace is a small arc melting furnace. The alloy ingot can be turned over for multiple smelting without destroying protective atmosphere, and up to 7 samples can be prepared at the same time. It is an ideal equipment for preparing metal and alloy samples in universities and research institutes, and can be used for preparation, purification and mixed applications of new alloy materials.
Main Features
1. It is equipped with a Ø120mm furnace door, which is convenient for taking and placing samples
2. It is equipped with front and rear observation windows, which is convenient for observing the arcing and melting state.
3. The vacuum chamber, copper crucible and arcing electrode are all cooled by water.
4. The up and down movement adopts steering wheel design, and the operation rocker is flexible.
5. In order to ensure that the alloy ingot can be turned over for multiple smelting without destroying protective atmosphere, a manipulator turn-over mechanism is used in the melting furnace.
6. The crucible is small in size and large in quantity, which can facilitate the production of multiple samples and avoid mutual contamination between samples.
7. Simple to operate, safe and convenient, compact in design, covering less space
Chamber door | Front observation window | Rear observation window | Turn-over manipulator | Consumable electrode (for placing flashlight) | Electrode control (arc ignition and current regulation) |
| | | | |
|
Technical Parameters
Product Name | MSM20-8 (Non-Consumable) Compact Metal Melting and Suction Coating Furnace | |
Installation Conditions | This equipment is required to be used at an altitude of 1000m or less, a temperature of 25℃±15℃, and a humidity of 55%Rh±10%Rh. 1. Water: The equipment is equipped with a self-circulating cooling water machine (filled with pure water or deionized water) 2. Electricity: AC380V 50Hz (63A air switch), must have good grounding 3. Gas: The equipment chamber needs to be filled with argon gas (purity 99.99% or more), and argon gas cylinders are required (with Ø6mm double ferrule joints) 4. Workbench: floor type, 900mm×600mm×700mm, bearing more than 200kg 5. Ventilation device: needed | |

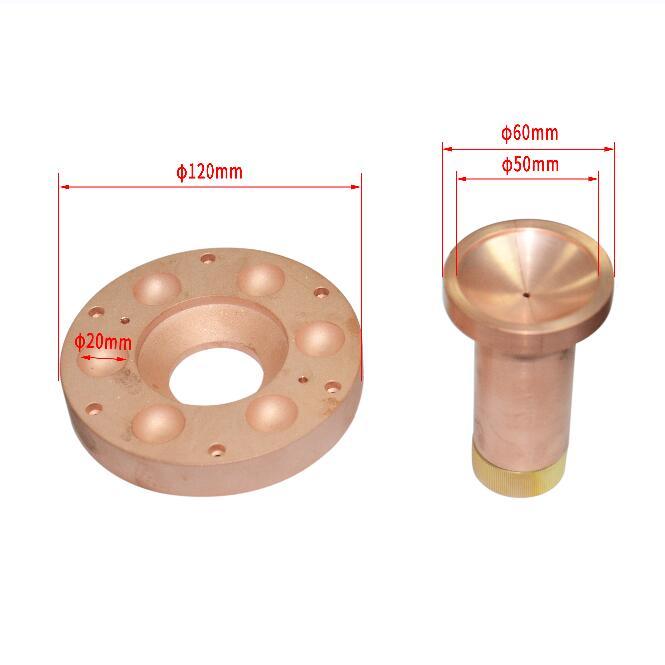

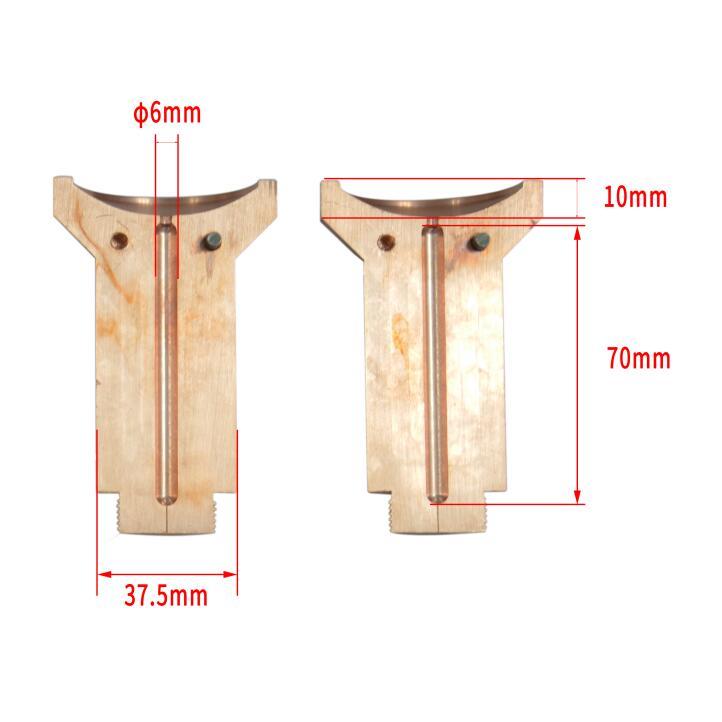

Major Parameters (Specification) | 1. Power supply: AC380V 50Hz 2. Power of the whole machine: <12kW 3. Vacuum chamber: Ø200mm×300mm 4. Crucible: 7 melting cavities, 6 of which are for melting, size: Ø20×8 (smelting weight 8g, stainless steel) suction casting sample size: φ6 (smelting weight 15g, stainless steel) The following are optional: 50g crucible, size φ40×8 (melting weight 50g stainless steel), 1 pcs φ25×12.5 (smelting weight 20g, stainless steel), 4 pcs suction casting sample size φ10×75 (smelting weight, 15g stainless steel) 5. Vacuum degree: standard rotary vane pump can reach 10-3mbar, optional molecular pump of our company can reach 10-5mbar 6. Non-consumable arcing electrode: φ4 tungsten needle (W) 7. Scope of application: It can be used to smelt metal materials with a melting point lower than tungsten 8. Melting temperature: up to above 3500℃, which can melt almost all metals 9. Output current: 20-315(A)
4.5g tungsten melt sample 10g metal tungsten melt sample | |
Product Dimension and Weight | Dimension: 900mm×600mm×1800mm (including furnace frame); Weight: 50kg
| |
Optional Functions | 1. Metal smelting pipe sealing kit
| 2. Compact metal melting and suction casting furnace (MSM20-7) |
Standard Accessories | 1. Main Machine: 1 set 2. Suction Casting Kit 3. Mechanical Pump (including filter): 1 set 4. Chiller/Water Cooler: 1 pcs 5. Power Supply 6. Furnace Frame | |
Optional Accessories | 1. High Vacuum System 2. Anti-corrosion Digital Vacuum Gauge ( range of measurement: 3.8 × 10-5torr to 1125 Torr) 3. Pfeiffer Molecular Pump Group 4. Vacuum Unit | |
Warranty
One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
