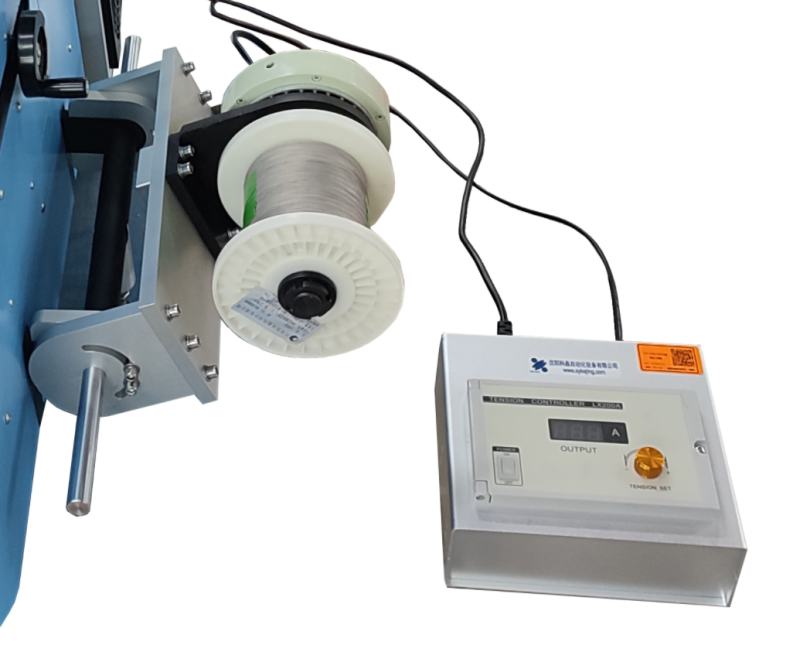

Electric Wire Installer - 1
STX-2500/50QX electric wire installer is suitable for STX-50QX diamond wire saw. It adopts a low-speed and large-torque motor to drive the spooler, which can rotate clockwise and counterclockwise. The electric magnetic powder damper controls the rotational resistance through current. When in use, install the drive motor together with the fixing plate onto the pulley side of the spooler (remove the original fixing plate), and fix the magnetic powder damper on the side of the device.
- Shenyang Kejing
- Shenyang, China
- 10 working days
- 50 sets
- Information
Product Introduction
The STX-2500 50QX Electric Wire Loader is a dedicated accessory for the STX-50QX diamond curve cutting machine, designed for automatic loading of large-diameter diamond wire spools (typically 2500 m).
Driven by a low-speed, high-torque motor and equipped with an electromagnetic powder clutch with constant-pressure control, the device ensures stable and adjustable rotational resistance, providing uniform wire winding and precise pre-tension. With multi-speed adjustment and full-machine coverage in a single operation, the STX-2500 significantly improves loading efficiency, reduces manual labor, and serves as an ideal solution for enhancing productivity in industrial diamond wire cutting applications.
Technical Parameters
Product Name | STX-2500/50QX electric wire installer |
Product Model | STX-2500/50QX |
| Installation Requirements | 1. Ambient temperature: 0–45 °C; Relative humidity: 10–85% RH (25 °C, non-condensing) 2. Free from strong vibration and corrosive gases |
| Major parameters (specification) | 1. Power Supply Interface：Standard three-pin grounded socket with fuse, AC 220 V, 50 Hz, 10 A; proper grounding required 2. Magnetic Powder Clutch Torque：0–6 N·m 3. Controller Model & Parameters： ① KTC800C: Constant-pressure mode adjustment range 0–24 4. Product Dimensions (Magnetic Powder Clutch)： · Size: 300 × 280 × 115 mm |
