Electric Wire Installer

Brand Shenyang Kejing

Product origin Shenyang, China

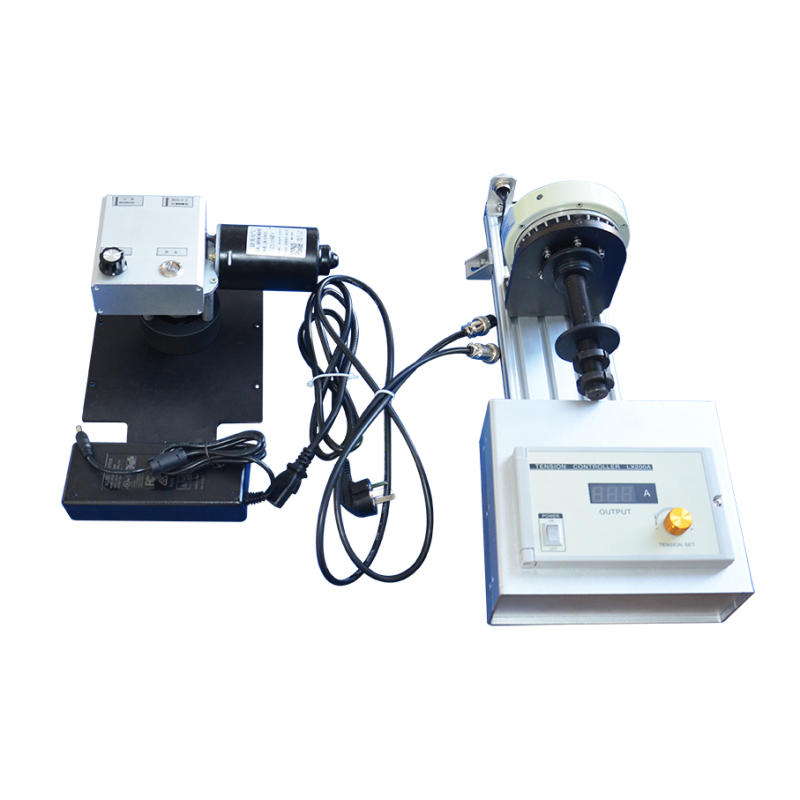

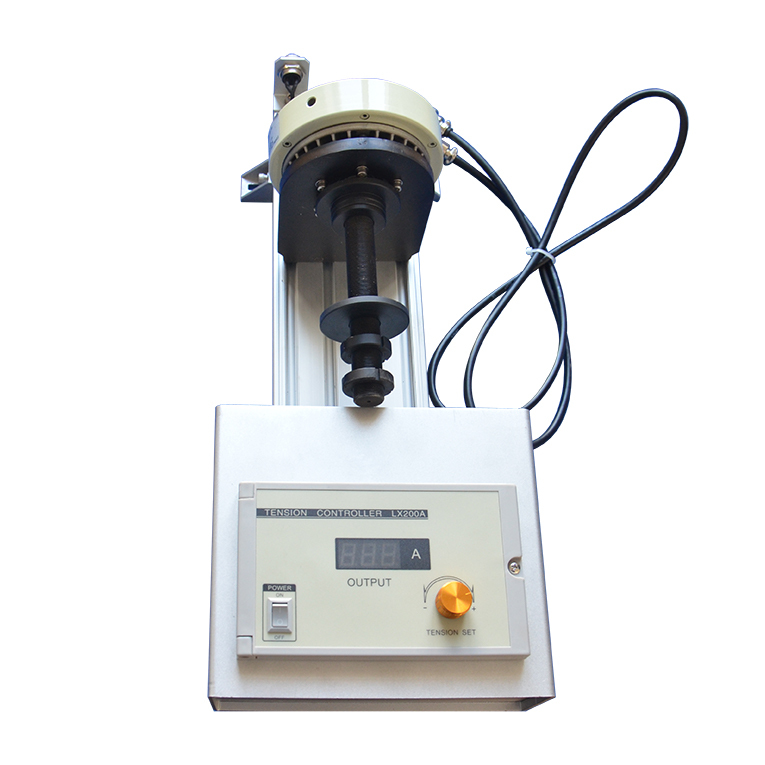

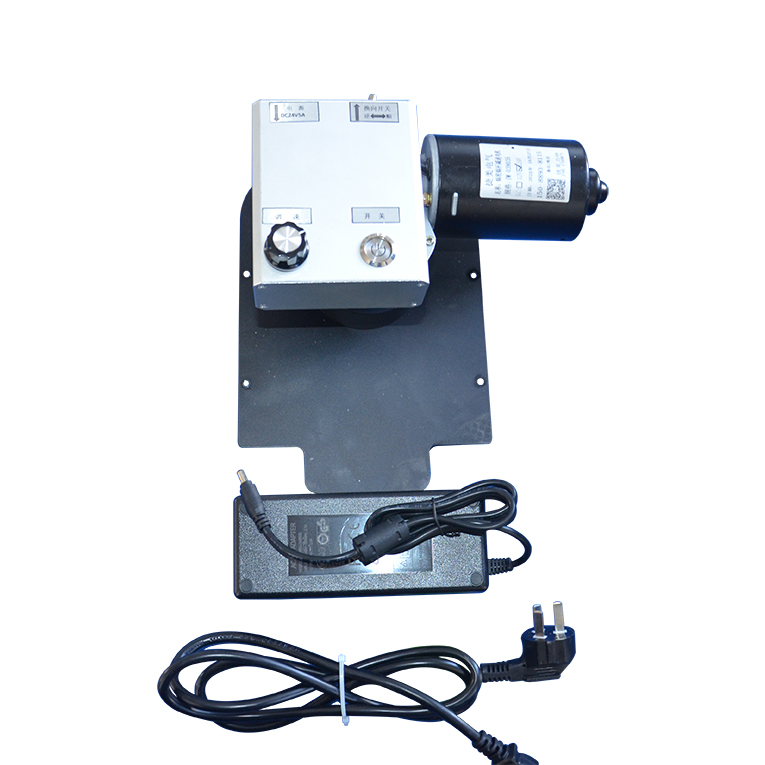

STX-2500 (and STX-2500/100QX) electric wire installer is suitable for diamond wire saws. It adopts a low-speed and large-torque motor to drive the spooler, which can rotate CW and CCW. The electric magnetic powder damper controls rotational resistance through current. When in use, install the drive motor together with the fixing plate onto the pulley side of the spooler (remove the original fixing plate), and fix the magnetic powder damper on the side of the device.

Email

Product Introduction

STX-2500 electric wire installer is suitable for STX-600, STX-1203, STX-2401 and other diamond wire saws (STX-2500/100QX electric wire installer is suitable for STX-100QX diamond wire saw). It adopts a low-speed and large-torque motor to drive the spooler, which can rotate clockwise and counterclockwise. The electric magnetic powder damper controls rotational resistance through current. When in use, install the drive motor together with the fixing plate onto the pulley side of the spooler (remove the original fixing plate), and fix the magnetic powder damper on the side of the device.

Technical Parameters

Mounting Conditions

1. This equipment is required to be used at an altitude of 1000m or less, a temperature of 25℃±15℃, and a humidity of 55%Rh±10%Rh.

2. Water: N/A

3. Electricity: AC220V 50Hz

3. gas: N/A

4. Workbench size: 700mm*500mm

5. Ventilation device: no need

Major parameters

(specification)

1. spooler drive motor: 24V, 80W, 30r/min

2. magnetic powder damper: 0--6NM, controller adjustment range: 0--0.8A
