Swing Rotary Sample Fixture and Rotation Control System
STX-202A-A swing/rotary sample fixture is mainly used for samples with extremely high requirements for roughness and flatness of sample surface when cutting with a diamond wire saw.
Send Email Details -
Geological Thin Slice Cutting System
STX-202A geological thin slice cutting system is aimed at processing rock samples in geological industry. It can adsorb geological thin slice by connecting an oilless vacuum pump to a suction filter tank and a vacuum chuck. The required thickness is much easier to achieve by suing thinner diamond wire when cutting the slice.
Send Email Details -
Swing Sample Fixture for Diamond Wire Saw
STX-1200-YB swing sample fixture is specially developed and designed for STX-1203 automatic diamond wire saw. It is mainly used for cutting high hardness materials (such as silicon carbide, silicon nitride, alumina ceramics, zirconia, sapphire, Jade, etc.) and low hardness materials (such as barium fluoride, graphite, KDP, etc.). It can also be used for precision cutting of brittle materials such as crystals, ceramics, glass, thermoelectric materials (such as bismuth telluride, lead telluride, silicon germanium alloys, etc.), rock samples, mineral samples, PCB boards, refractory materials, composite materials, biological and biomimetic composite materials or used for cutting difficult-to-cut materials such as metal materials, rubber and other organic materials. STX-1200-YB swing sample fixture swings left and right during operation. It can reduce the contact area between the cutting wire and the sample, prolong the contact time, improve roughness and flatness of the sample surface, and reduce wire cutting traces on the sample. At the same time, STX-1200-YB swing sample fixture is equipped with an elevated frame, which can increase swinging extent of the sample and increase the wire swing speed, thereby increasing the grinding efficiency per unit time and improving the cutting speed of the sample.
Send Email Details -
Axis Swing/Rotary Sample Fixture and Rotation Control System
STX-1200-A axis swing/rotary sample fixture is specially developed and designed for STX-1203 automatic diamond wire saw. It is mainly used for cutting high hardness materials (such as silicon carbide, silicon nitride, alumina ceramics, zirconia, sapphire, Jade, etc.) and low hardness materials (such as barium fluoride, graphite, KDP, etc.). The STX-1200-A axis swing/rotary sample fixture can perform both swing cutting and rotary cutting in the opposite direction to that of the working diamond wire. For a larger or heavier sample, the top part of the sample should be fixed with a spindle, so the sample top will rotate simultaneously with the spindle. In this way, the cutting efficiency per unit time is improved, the actual cutting time is shortened, the service life of the diamond wire is prolonged, the roughness and flatness of the cutting surface is significantly improved, and the cutting wire traces on sample surface are reduced, resulting in a high-quality cutting surface.
Send Email Details -
Vacuum Heating Plate
HP-500V vacuum heating plate is specially developed for material processing and material research laboratories. With cast brass heating area, it has the features of fast heating speed, precise temperature control, adjustable temperature, fast heat dissipation after use, with maximum heating temperature of up to 500 ℃.
Send Email Details -
Wafer Puncher for Metals
PM200 metal wafer puncher can be used together with a distortion-free transmission electron microscope (TEM) when preparing samples. The product punches the metal disc to obtain the required sample, which reduces the difficulty of manual manufacturing as well as the preparation time. The product is used to prepare wafers of 3mm diameter, and is mainly used for metal materials with extensibility and good toughness. Compared with similar products on the market, PM200 metal wafer puncher has better repeatability and higher dimensional accuracy when preparing wafer samples of the same size, and the service life is several times that of similar products. PM200 metal wafer puncher is made of light aluminum alloy as the base, and the surface is treated with special sandblasting oxidation, which makes it very smooth when touched. The punch head is made of die steel and its surface hardness and wear resistance are improved after heat treatment, therefore the service life is greatly increased. The product uses a lever structure to reduce the force of the operator and is ergonomic friendly. If wafers of special sizes are required, the puncher can be customized individually.
Send Email Details -
Round Heating Plate
Round heating plate is suitable for heating items at laboratories of industrial, agricultural, working conditions, medical and scientific research institutions. It can also be used for cooking, boiling and steaming food at home.
Send Email Details -

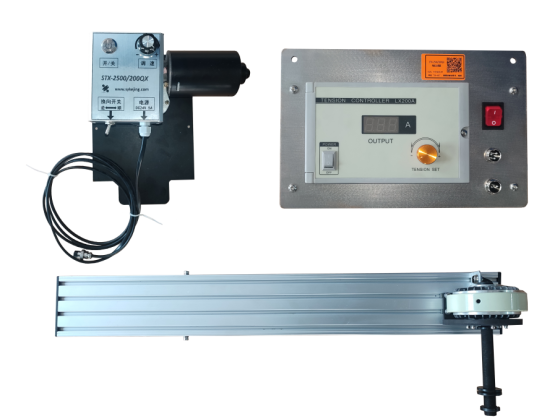

Electric Wire Installer -2
STX-2500-100QX/200QX electric wire installer is suitable for STX-100QX,STX-200QX diamond wire saw. It adopts a low-speed and large-torque motor to drive the spooler, which can rotate clockwise and counterclockwise. The electric magnetic powder damper controls the rotational resistance through current. When in use, install the drive motor together with the fixing plate onto the pulley side of the spooler (remove the original fixing plate), and fix the magnetic powder damper on the side of the device.
Send Email Details -
LubeCool for Cutting
LubeCool is solid powder to make lubricant and coolant for cutting. It performs well in lubricating, cooling, rust-resisting and cleaning, and it can prolong the service life of blades, improve cutting efficiency and lower production cost.
Send Email Details
