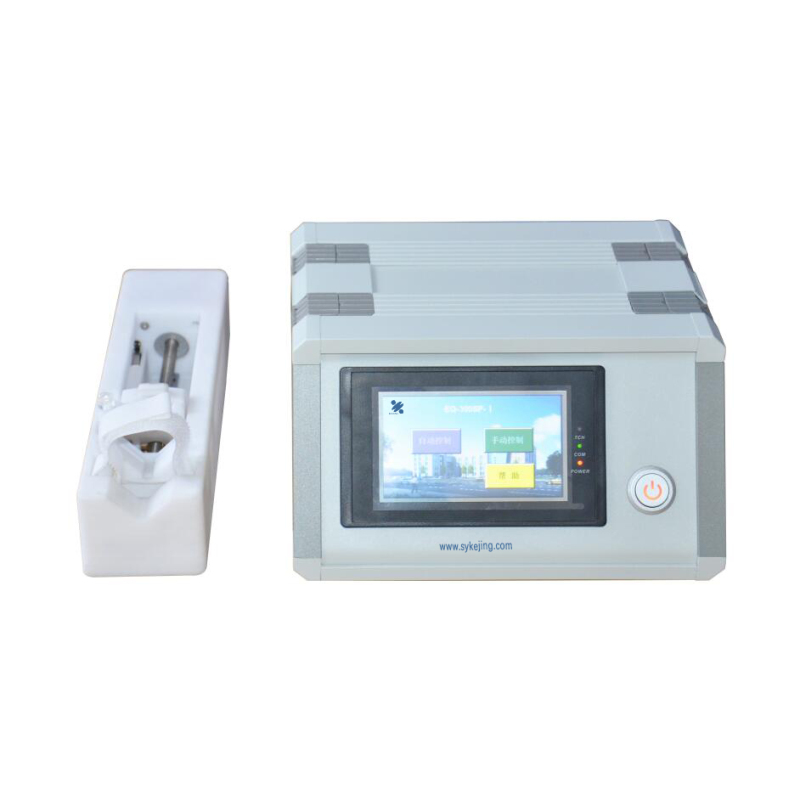

Syringe Pump With Touch Screen
EQ-300SP-I Single-Channel Syringe Pump is composed of a stepper motor and its driver, a screw rod and a bracket, as well as reciprocating screw and nut. The nut is connected with the piston of the syringe, and the solution is contained in the syringe, which can realize high-precision, smooth and pulsation-free liquid transmission. It is mainly used in solution supply of ultrasonic atomization spraying and electrospinning system.
- Shenyang Kejing
- Shenyang, China
- 22 working days
- 50 sets
- Information
Product Introduction
The EQ-300SP-I single-channel syringe pump is composed of a stepper motor with its driver, a precision lead-screw and nut mechanism, and a stable support structure. The lead screw drives the nut—connected to the syringe plunger—to perform linear reciprocating motion, enabling high-precision, smooth, and pulse-free liquid delivery from the syringe.
The system adopts a stepper-motor-driven design with a precision screw–nut assembly, ensuring accurate and stable piston movement. Its modular, independently controlled structure enhances system adaptability. The pump body is made of insulated nylon material, providing strong corrosion resistance and effectively reducing electrostatic interference. This syringe pump is particularly suitable for supplying solutions to electrospinning systems and ultrasonic spray-coating systems.
Main Features
1. Propulsion Syringe Pump
2. Split structure, the syringe pump is separated from the control box and connected by a control line.
3. The syringe pump is made of nylon, and is suitable for a variety of corrosive materials, and the insulation is more conducive to electrospinning.
Technical Parameters
Product Name | EQ-300SP-I Single-Channel Syringe Pump |
Product Model | EQ-300SP-I |
Main Parameters (Specification) | 1. Liquid injection speed: 0.001-20mm/min 2. Travel distance: 0.01-90mm 3. Syringe diameter: 0.04-30mm 4. Standard syringe: 20mL |
Product Dimensions | 1. Dimension of controller: 230mm(W)×200mm(D)×130mm(H) 2. Dimension of syringe pump: 260(W)×65mm(D)×65mm(H) |
Warranty
One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
