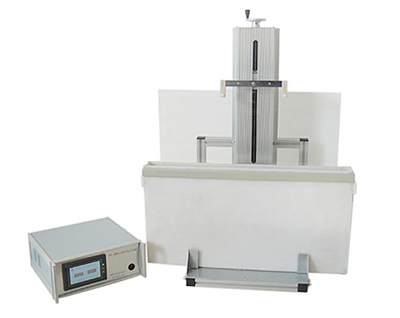

PLC Controlled Precision Dip Coater (10-1000mm/min)
The PTL-MM02-1000 PLC Controlled Precision Dip Coater is a precision equipment designed specifically for the study of liquid phase growth films. The film is grown by vertically dipping samples in the liquid phase in a constant temperature field. The machine adopts high precision speed control system and parameter input terminal of touch screen to realize automatic control of the whole process of dipping film.
- Shenyang Kejing
- Shenyang, China
- 10 working days
- 50 sets
- Information
Product Introduction
The PTL-MM02-1000 Vertical Dip Coater is a precision instrument specifically designed for the study of liquid-phase film growth. In a constant-temperature environment, thin films are formed by vertically lifting samples from the liquid phase. The system is equipped with a high-precision speed control mechanism and a touch-screen interface for parameter input, enabling fully automated control of the entire dip-coating process.
Main Features
· The stepping Angle of the two-phase hybrid stepper motor is subdivided by the driver.
· The dipping speed, dwell time, inlet speed and cycle times can be set.
Technical Parameters
Product Name | PTL-MM02-1000 PLC Controlled Precision Dip Coater | |
Product Model | PTL-MM02-1000 | |
Installation Conditions | 1. Power Supply: Single-phase AC100~240V, 50/60Hz. A 10A air switch must be installed upstream. 2. Operating Environment: To be used at a temperature of 25℃ ±15℃ and humidity of 55%Rh ±10%Rh. | |
Main Parameters (specification) | 1. Operating Voltage: DC24V 3.75A (Standard: AC100~240V power adapter) 2. Rated Power: 50W 3. Type: Program-controlled – Room Temperature Model 4. Drive Motor: High-precision stepper motor 5. Speed Range: 10–1000 mm/min (increment/decrement: 1 mm) 6. Immersion Time: 1–999 s (increment/decrement: 1 s) 7. Drying Time: 1–999 s (increment/decrement: 1 s) 8. Lifting Stroke: 1–350 mm (increment/decrement: 1 mm) 9. Lifting Cycles: 1–20 times 10. Sample Substrate Size: MAX: (L) 610 mm × (W) 315 mm × (T) 1–5 mm 11. Effective Immersion Depth: ≤300 mm 12. Maximum Lifting Load: ≤5.5 kg 13. Reservoir Material: White acrylic 14. Reservoir Dimensions (inner): (L) 640 mm × (W) 50 mm × (H) 335 mm 15. Display & Control: 4.3-inch color touchscreen | |
16. Product Specifications: · Dimensions: 670 mm × 380 mm × 860 mm · Net Weight: ≈20 kg |
| |
Standard Accessories
| No. | Name | Quantity | Image |
| 1 | Control Box | 1 pc | - |
| 2 | Immersion Tank | 1 pc | - |
Optional Accessories
| No. | Name | Function Category | Image |
| 1 | Customizable sample holders of different sizes are available upon request. | Optional | - |
Warranty
One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
