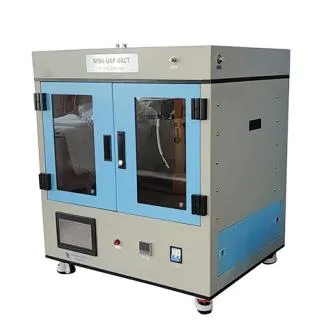

Lab Desktop Ultrasonic Spray Pyrolysis Equipment
1. Our Ultrasonic spray pyrolysis coating machine uses spray film making, which can adjust different heights or replace nozzles.
2. Our Ultrasonic spray pyrolysis coating machine is of guaranteed quality and is tested by professional departments, with a long service life.
3. Ultrasonic spray pyrolysis coating machine uses touch screen and intelligent temperature control table, which is easy to operate.
- Shenyang Kejing
- Shenyang, China
- 10 working days
- 50 sets
- Information

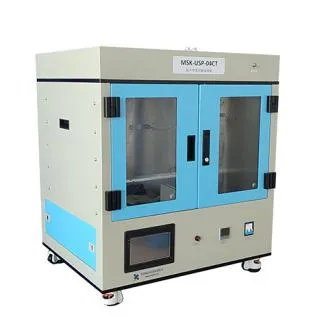

Product Introduction

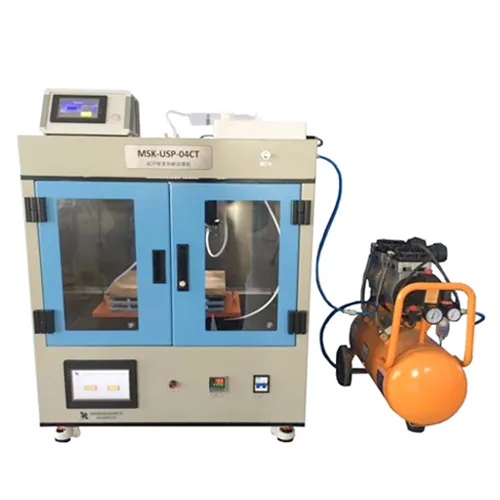

The MSK-USP-04CT Ultrasonic Spray Pyrolysis Coating System is a high-precision, programmable film deposition device designed for uniform thin film fabrication. The system employs a stepper motor and microprocessor-controlled volumetric pump to deliver the coating solution with high stability and accuracy, ensuring continuous and reproducible ultrasonic spraying.

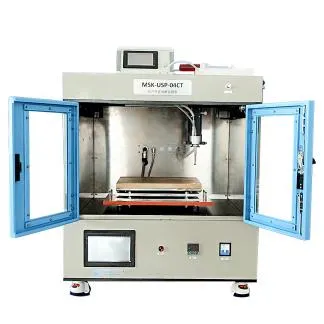

A high-frequency ultrasonic atomizer converts the precursor solution into fine micro/nano-scale droplets, which are uniformly deposited onto the substrate surface. The spray head, driven by stepper motors, moves along both the X and Y axes with adjustable speed, ensuring coating uniformity across the substrate.
The integrated heating platform precisely controls the substrate temperature, accelerating solvent evaporation and film densification. With a maximum temperature of up to 300°C, the system meets the requirements of most experimental and material research applications.
Compact in design and easy to operate, the MSK-USP-04CT is ideal for preparing functional thin films in fields such as optoelectronic materials, conductive layers, catalytic coatings, and new energy materials.
Principle of Operation:
Automatic ultrasonic spray pyrolysis coater adopts spray pyrolysis film making method, which is to spray the solution onto the heated substrate after atomization, and then obtain the desired material structure on the substrate. This material preparation method is particularly suitable for depositing oxides, and has a long history in the application of preparing transparent electrodes. Now this method is widely used in the preparation of perovskite solar cells.
Main Features
1.Ultrasonic spray pyrolysis coating machine use PLC program control, easy touch screen operation.
2.Use synchronous pulley to connect linear guide rail slideway structure, high speed and low noise.
3.Sheet metal frame structure, beautiful appearance.
4.Different nozzles can be replaced, and the height can be adjusted to achieve the best effect of atomization surface.
5.The nozzle is equipped with pneumatic assistance, which can effectively control the deposition of atomized solution particles in the specified area.
Technical parameters of Automatic ultrasonic spray pyrolysis coater:
Product name | MSK-USP-04CT Ultrasonic Spray Pyrolysis Coating Machine | |
Product model | MSK-USP-04CT | |
Installation conditions | 1. Temperature and humidity：10-85%RH (at 25℃ without condensation) Temperature: 5-45℃. 2. There is no strong vibration source and corrosive gas around the equipment, and the surrounding space is not less than 200mm. 3. Water source：no requirement 4. Power supply：single phase: AC220V 50Hz 16A. 5. Gas source：compressed gas (air compressor) > 0.4Mpa 6. Workbench：recommended size: 1000mm×800mm×550mm, load-bearing 150kg or more solid platform 7. Ventilation device：the equipment needs to be connected to the exhaust pipeline | |
Main parameters of Ultrasonic spray pyrolysis machine | 1. Host power supply port of Ultrasonic spray pyrolysis machine：AC220V 50Hz 16A 2. Host total power：2.8kW (excluding air compressor) 3. X-axis travel：1-300mm 4. Y-axis travel：1-220mm5. X-axis speed range: · Manual operation control：10-200mm/s. · Automatic operation control：10-600mm/s. 6. Y-axis speed range: · Manual operation control：10-200mm/s. · Automatic operation control：10-600mm/s. 7. Layer spacing：1-100mm 8. Z-axis manual maximum adjustment：90mm 9. Atomizing nozzle: · CSA40-1 mushroom head：wider spray diameter-40mm 1 pc. · CSA40-2 cylindrical tip：narrower spray diameter-20mm 1 pc. 10. Ultrasonic nozzle frequency：40KHz±10%: 11. Ultrasonic maximum power：200W 12. Particle size：10-20um 13. Flow rate：0.6pl-4mL/min 14. Viscosity： ≤100cps 15. Solid content：≤10% 16. Exhaust port：Φ75mm 17. Host operation control mode：7-inch touch screen + AT intelligent temperature control table | |
18. Cast copper heating plate size：350mm×240mm 19. Heating range：room temperature-300℃ 20. Heating power：2.5kW |
Heating Platform | |
21. Syringe pump dimensions：250mm×65mm×50 mm 22. Injection speed：0.001-20 mm/min 23. Fine-tuning speed：0.001-10 mm/min 24. Syringe diameter：0.04-30 mm 25. Standard needle volume：20mL 26. Stroke setting range：0.01-90 mm 27. Operation control mode：4.3-inch touch screen independent setting (linked with the host) 28. Pump power：≤50W 29. Pump power supply port：DC24V (standard "power adapter" IN: AC100-240V 50/60Hz OUT: DC24V 3.75A) |
Injection pump | |
30. Product specifications: ·Dimensions：700mm×620mm×800mm ·Total weight：120kg |  | |
| Compliance | CE Certified, UL or CSA certification is available at extra cost. | |
Optional accessories of Ultrasonic spray pyrolysis machine:
NO. | Name | Function | Picture |
| 1 | Catheter coating | (optional) |
|
Logistics:
Quality Commitment of Automatic ultrasonic spray pyrolysis coater:
Our company guarantees that the Lab vertical dip coating machine provided is brand new, unused, and fully meets the quality, specification and performance requirements specified in the contract, and that our equipment should have satisfactory performance under correct installation, correct use and maintenance conditions and during its service life.
