High Speed Cut-off Saw
1. Electric high speed cutting saw has small size, low noise and smooth operation.
2. Electric high speed cutting saw is easy to clean and simple to operate.
3. Electric high speed cutting saw is suitable for processing a wide range of materials and is suitable for use in universities, colleges and scientific research institutes.
- Shenyang Kejing
- Shenyang, China
- 10 working days
- 50 sets
- Information
High Speed Cut Off Machine Main Features：
·Fast cutting saw blade supports cutting at a certain angle. Small size, space saving. Low noise, stable operation. Easy to clean and easy to operate.
Introduction To Fast cutting saw blade：

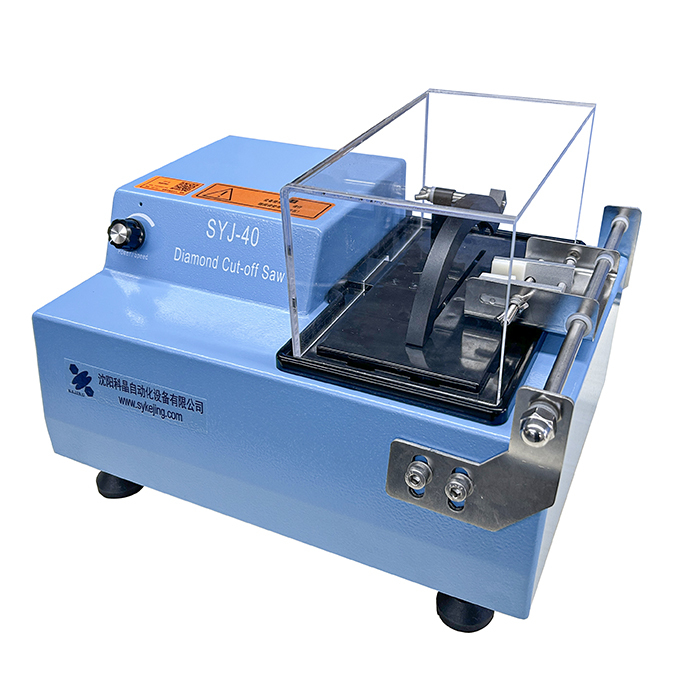

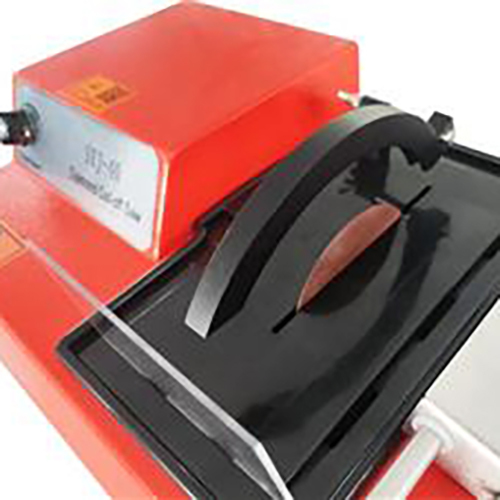

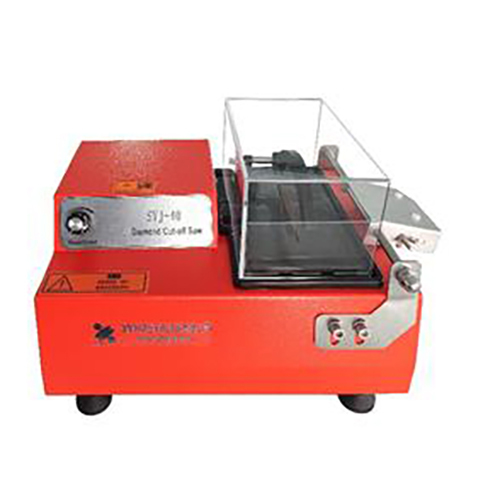

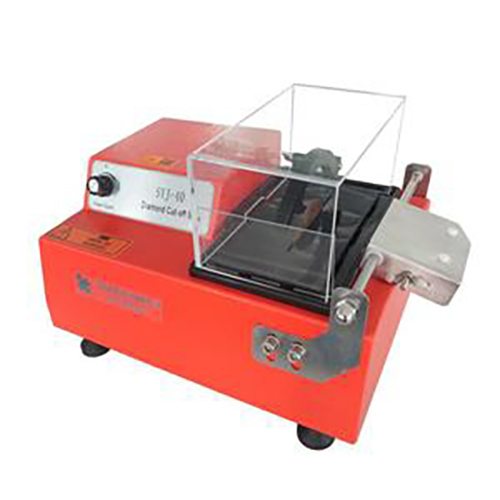

SYJ-40 Electric high speed cutting saw is used for rough processing of materials such as crystals, ceramics, quartz glass, PCB boards, rock samples, mineral samples and metallographic samples. Electric high speed cutting saw has a wide range of applications, especially for colleges and universities and scientific research institutes.
SYJ-40 High speed cut off machine adopts stepless speed regulation device, which can adjust the rotation speed of the saw blade according to the characteristics of the cutting material. Low noise during operation, low environmental pollution, and easy cleaning. Fast cutting saw is easy to operate, safe and reliable, small size, save laboratory space, easy to carry, and has the characteristics of corrosion resistance and rust-free. Cooling water is recycled to avoid outflow and save water.
SYJ-40 High speed cut off machine not only supports straight cutting, but also cutting at a certain angle. The cutting speed of Fast cutting saw blade is manually controlled, simple to operate, and high cutting efficiency.
Fast Cutting Saw Technical Parameters：
Product Name | SYJ-40 High speed cut off machine |
Product Model | SYJ-40 |
Conditions for Installation of fast cutting saw | 1. Temperature and humidity requirements: Relative humidity 10~85%RH (25℃ without condensation), temperature 0~45℃. 2. Environmental requirements: No strong vibration source and corrosive gas around the high speed cut off machine. 3. Power requirements: National standard three-pole socket, AC 100~240V, 50/60Hz, 10A, must be well grounded. |
The main parameters of Fast cutting saw blade | 1. Power supply port: DC24V 11.67A (standard "power adapter"). 2. Drive motor parameters: DC24V, 90W, 5.2A, maximum speed 2500rpm. 3. Spindle speed (effective value): 650~2500rpm. 4. Saw blade size: Ø100mm. 5. Maximum processing size (section): 25mm×40mm. |

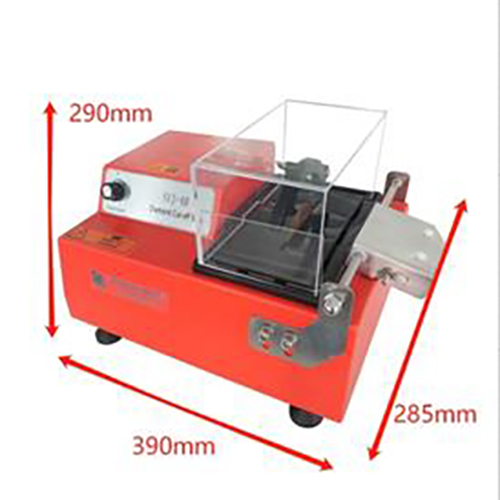

6. Dimension and Weight Dimension: 390mm×285mm×290mm； Weight: 7kg
| |
Note: Specifications of the standard "power adapter": · Input: AC100-240V, 50/60Hz, 160W · Output: DC-24V, 6.67A For actual power supply parameters, please refer to the label attached to the back of the device. 2. Non-standard fixture pads can be designed and processed according to user requirements. |
Standard Accessories of Fast cutting saw blade：
No. | Name | Qty | Picture |
1 | Blade Clamp (Ø38mm×Ø12.7mm) | 1 set |  |
2 | Electroplated Diamond Blade (Ø100mm×Ø12.7mm×0.4mm) | 2 pcs |  |
3 | Silicon Carbide Blade (Ø100mm×Ø12.7mm×0.4mm) | 10 pcs |  |
4 | Corundum Blade (Ø100mm×Ø12.7mm×0.4mm) | 10 pcs |   |
5 | Cutting Coolant Powder | 100g |  |
Optional Accessories：
No. | Name | Functional type | Picture |
1 | Cutting Fixture for thin Geological slices | （optional） |
|
Warranty：
One year limited with lifetime support (not including rusted parts due to inadequate storage conditions).
