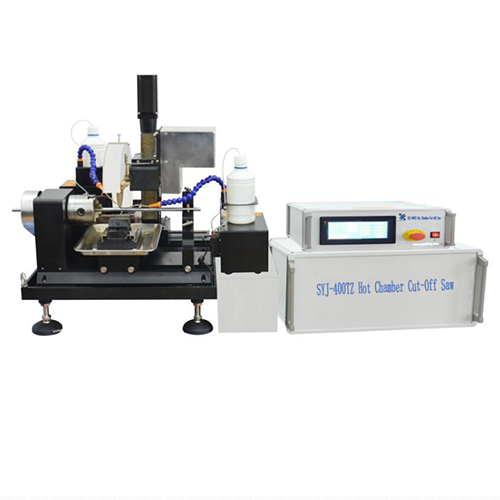

Automatic Cutting Saw For Hot Chamber
1. The main equipment is installed in the hot chamber, and the High speed cutting saw is suitable for hot chamber environment and robot operation.
2. High speed cutting saw has the functional requirements of fixed-point cutting of fuel rods and metallographic sample cutting.
3. The Diamond Saw can use a remote touch screen to control the sawing machine.
- Shenyang Kejing
- Shenyang, China
- 44 working days
- 10 sets
- Information
Introduction of Diamond Saw:
This SYJ-400TZ hot chamber cutting machine(Fast cutting saw) is a highly efficient cutting equipment customized and designed according to customer needs. Fast cutting saw can easily deal with samples of various materials, improve work efficiency and reduce costs;
No matter what school or laboratory you work in, our Fast cutting saws are suitable, and at the same time Fast cutting saws are small, which also increases the overall high adaptability.
Main features of manual cutting saw:
1.Fast cutting saws produce smoother cuts and are suitable for materials of various shapes and thicknesses.
2.Cutting saw for hot chamber can not only accurately perform fixed-point cutting of fuel rods, but also meet the requirements of metallographic sample cutting, providing solutions for various cutting needs.
3.High speed cutting saw reduces the possibility of material deformation or damage.
Manual Cutting Saw Technical Parameters:
Product name | SYJ-400TZ Manual Cutting Saw | |
Product model | SYJ-400TZ | |
| Installation conditions of diamond saw | 1.Diamond saw is required to be used at a temperature of 25℃±15℃ and a humidity of 55%Rh±10%Rh. 2. Cooling water: The diamond saw itself is equipped with an upper water outlet and a lower water outlet, and you need to connect tap water and drainage by yourself. 3. Electricity of Manual cutting saw : AC220V, 50Hz. 4. Air source of Manual cutting saw : None. 5. Workbench size: 1200mm×900mm×700mm. 6. Ventilation device: required. | |
Major Parameters (Specifications) of Diamond Saw | 1. Voltage of Diamond Saw: AC220V 2. Spindle speed of Diamond Saw: 100-3000rpm 3. X-axis slide distance: 160mm 4. Z-axis slide distance: 100mm 5. A-axis rotation angle: 360° 6. A-axis rotation angle of 360° with +/- 0.5° tolerance 7. Stepper motor positioning accuracy: 0.01mm 8. Blade OD: Φ150±10mm 9. Blade inner hole: Φ12.7mm 10. Fuel rod sample: Φ9.5×1000mm 11. Metallographic sample size: Φ32×140mm | |
| Dimension of fast cutting saw | 12. Specifications of Cutting Saw For Hot Chamber: ·size of Cutting Saw For Hot Chamber: ·Host dimensions: 510×500×635mm ·Host control box: 500×400×210mm ·Remote control box: 380×310×210mm ·Weight of Cutting Saw For Hot Chamber: 39kg |
|
High Speed Cutting Saw Warranty:
· One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
