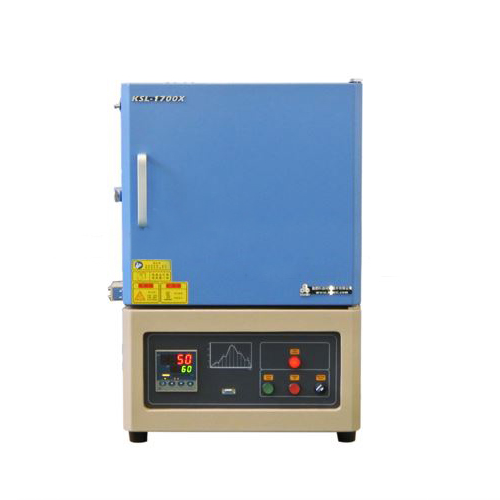

1700℃ High Temperature Box Furnace (19L) KSL-1700X-A3
1. Our industrial box furnace utilizes advanced heating technology to ensure uniform furnace temperature, avoiding the effects of temperature differences.
2. This industrial box furnace can withstand an operating temperature of 1700 degrees Celsius, suitable for various high-temperature processing needs.
3. Our industrial box furnace features a user-friendly control interface and an easy-to-clean design, reducing operational complexity and maintenance difficulty.
- Shenyang Kejing
- Shenyang, China
- 10 working days
- 50 sets
- Information
Introduction of Laboratory Box Furnace:

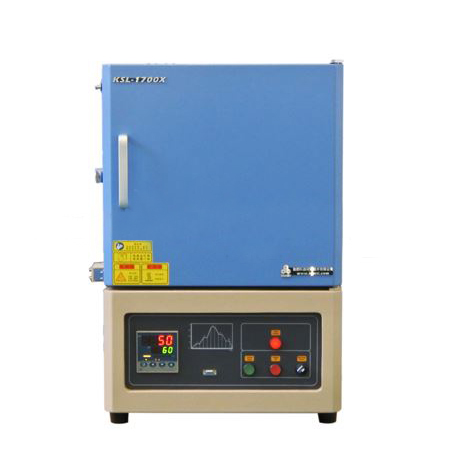

The KSL-1700X-A3 is an industrial box furnace that uses silicon molybdenum rods as heating elements. It employs a double-shell structure and PID programmable temperature control, uses type B thermocouples, and has a furnace chamber made of high-purity alumina fiber material. The maximum temperature can reach 1700 degrees Celsius, with a continuous operating temperature of 1600 degrees Celsius and a temperature control accuracy of ±1 degree Celsius. The laboratory box furnace features uniform temperature field, low surface temperature, and energy efficiency, making it an ideal product for high-temperature sintering, metal annealing, and quality inspection in universities, research institutes, and industrial enterprises.
Key features of a laboratory box furnace:
1. The industrial box furnace lining is made of high-purity alumina fiber, reducing energy loss.
2. The industrial box furnace lining surface is coated with an imported high-temperature alumina coating from the USA, improving heating efficiency and extending service life.
3. The laboratory box furnace features overheat and thermocouple break protection, and includes a door-open power-off function.
Technical parameters of an electric box furnace:
| Product Model | 1700℃ High Temperature Laboratory Box Furnace (19L) KSL-1700X-A3 |
| Technical Parameters | · Power Supply: AC220V 50HZ · Power: 9KW · Heating Zone Dimensions: 250*300*250mm (L*W*H) · Heating Element: Silicon Molybdenum Rods (8 rods) · MAX Heating Temperature: 1700℃ (≤30min) · Long-Term Operating Temperature: 1600℃ · Recommended Heating Rate: ≦10℃/min (≤1400℃) ≦5℃/min (1400-1600℃) ≦2℃/min (>1600℃) · Thermocouple: Type B |

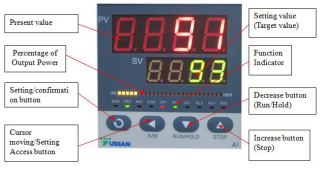

| Temperature Control System | • Includes a YD858P temperature controller. • PID automatic temperature control system. • Intelligent 50-segment programmable control. • Temperature control accuracy: ±1℃. • Default DB9 PC communication port. • MET certified. • Optional computer temperature control software (for YD858P series controllers) for controlling temperature rise curves and exporting data.
|
| Specifications of electric box furnace | Dimensions: 600mm (L) * 650mm (W) * 850mm (H) Weight: 150KG |
| Compliance of electric box furnace | CE Certified, UL or CSA certification is available at extra cost. |
Reasons of purchase an electric box furnace:
1. Improve product quality and reduce errors in the production process.
2. High-temperature stability makes it suitable for high-precision machining requirements.
3. Strong after-sales service ensures long-term high-precision operation of the equipment.
Warranty period of electric box furnace:
The laboratory box furnace comes with a one-year warranty (excluding consumable parts such as pads and heating elements).
About Shenyang Kejing:
Shenyang Kejing's factory covers a total area of approximately 14,000 square meters and has a professional R&D team. It boasts a complete production process including design, production, testing, packaging, and after-sales service. Choosing our electric box furnace will make your experimental production more efficient!
If your laboratory needs a box furnace that can stably handle experiments with high-melting-point materials and precisely control the temperature, consider Kejing's small laboratory box furnace. We have professional production equipment and R&D personnel, ensuring the high quality of our laboratory box furnaces. Welcome to purchase our furnaces and let them provide stable support for your experiments!

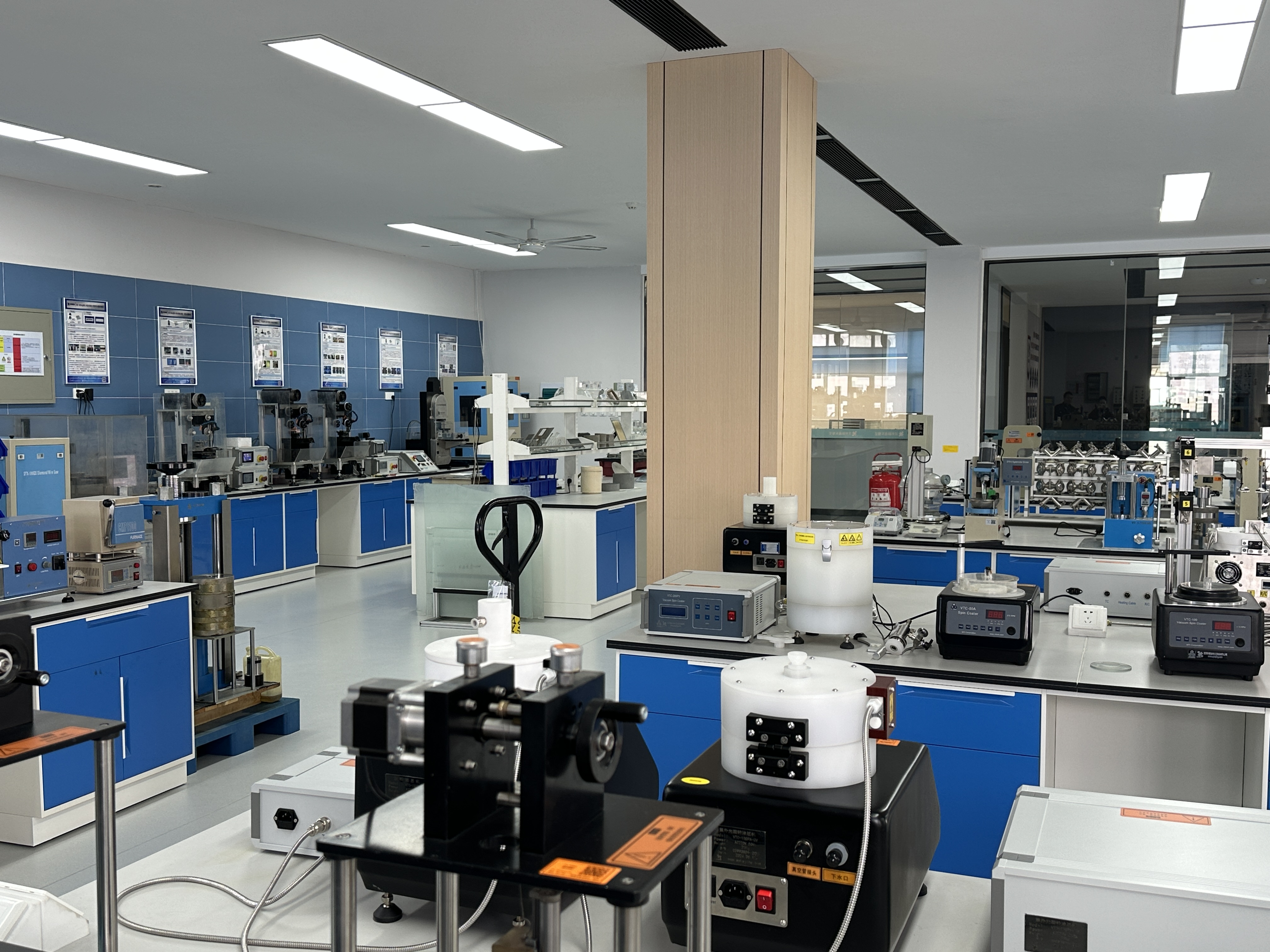

（This image is a real photo of Shenyang Kejing's laboratory, showcasing various types of equipment for different industries. ）
If you have any doubts about the electric box furnace or would like to see its actual performance, please contact our customer service for consultation. We also offer sample services to give you confidence in the equipment and allow you to purchase it with greater assurance.x
