STX-1200-YB Wire Saw Oscillating Mechanism

Parameters of the rotary sample fixture:

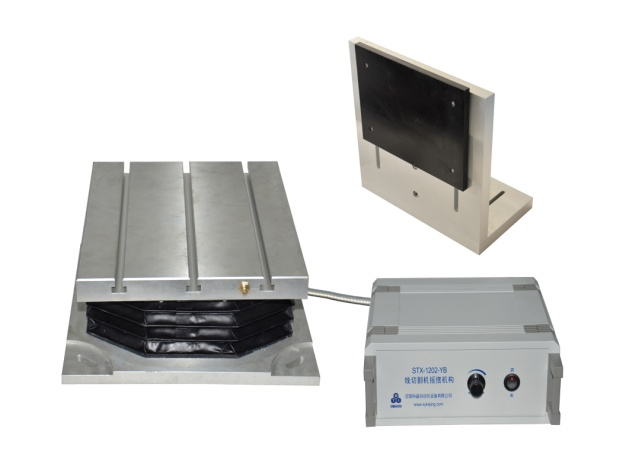

Product Name	STX-1200-YB Wire rotation control system for cutting machines
Product Model	STX-1200-YB
Installation Conditions	1. Temperature and Humidity: 10-85%RH (at 25℃, non-condensing) Temperature: 0-45℃. 2. No strong vibration sources or corrosive gases around the equipment.
Main Parameters	1. Wire feeder drive motor parameters: DC24V 80W 30rpm/min
	2. Oscillating speed: ≈0~20 rpm/min
	3. Oscillating angle: ±5°
	4. Oscillating amplitude: ±15mm
	5. Load capacity: ≤15kg
	6. Cutting depth (Z-axis travel): ≤260mm
	7. Product specifications:  · Wire feeder drive motor dimensions: 285mm×250mm×106mm · Net weight: 9kg

Introduction of the rotary sample fixture:

The STX-1200-YB rotation control system for cutting machines is specifically designed for the STX-1203 fully automatic diamond wire cutting machine. It is mainly used for cutting high-hardness materials (such as silicon carbide, silicon nitride, alumina ceramics, zirconium oxide, sapphire, jade, etc.) and low-hardness materials (such as barium fluoride, graphite, KDP, etc.). It can also be used for precision cutting of brittle materials such as crystals, ceramics, thermoelectric materials (e.g., bismuth telluride, lead telluride, silicon-germanium alloys), glass, rock samples, mineral samples, PCB boards, refractory materials, composite materials, and biological and biomimetic composite materials. It can also cut difficult-to-cut materials such as metals and organic materials like rubber.

The STX-1200-YB wire EDM machine's oscillating mechanism oscillates left and right during operation, reducing the contact area between the cutting wire and the sample, extending the contact time, improving surface roughness, increasing surface flatness, and reducing cutting line marks on the sample surface. Simultaneously, the STX-1200-YB wire EDM machine's oscillating mechanism is equipped with an extension frame, which increases the left-right oscillation amplitude of the sample and increases the oscillation linear speed, thereby increasing the grinding efficiency per unit time and improving the sample cutting speed.

Applications of the cutting machine accessory for samples:

This equipment boasts exceptional compatibility and is widely applicable to the precision cutting of the following materials:

· High-hardness materials: Silicon carbide, silicon nitride, alumina ceramics, zirconium oxide, sapphire, jade, etc.

· Low-hardness materials: Barium fluoride, graphite, KDP, etc.

· Brittle materials: Crystals, ceramics, thermoelectric materials (such as bismuth telluride, lead telluride, silicon-germanium alloys, etc.), glass, rock samples, mineral samples, PCB boards, refractory materials, composite materials, biological and biomimetic composite materials, etc.

· Difficult-to-cut materials: Various metal materials, rubber, and other organic materials.

Main features of the cutting machine accessory for samples:

· The rotation control system for cutting machines uses professional aluminum material for the body, providing shock absorption and corrosion resistance.

· Equipped with a waterproof and dustproof cover and speed controller.

· Effectively improves cutting efficiency and extends the lifespan of diamond wire.

· Significantly improves the roughness and flatness of the cut surface.

· High cutting precision, low noise, low power consumption, and smooth operation.

· Aesthetically pleasing, quick to install, and easy to operate.
