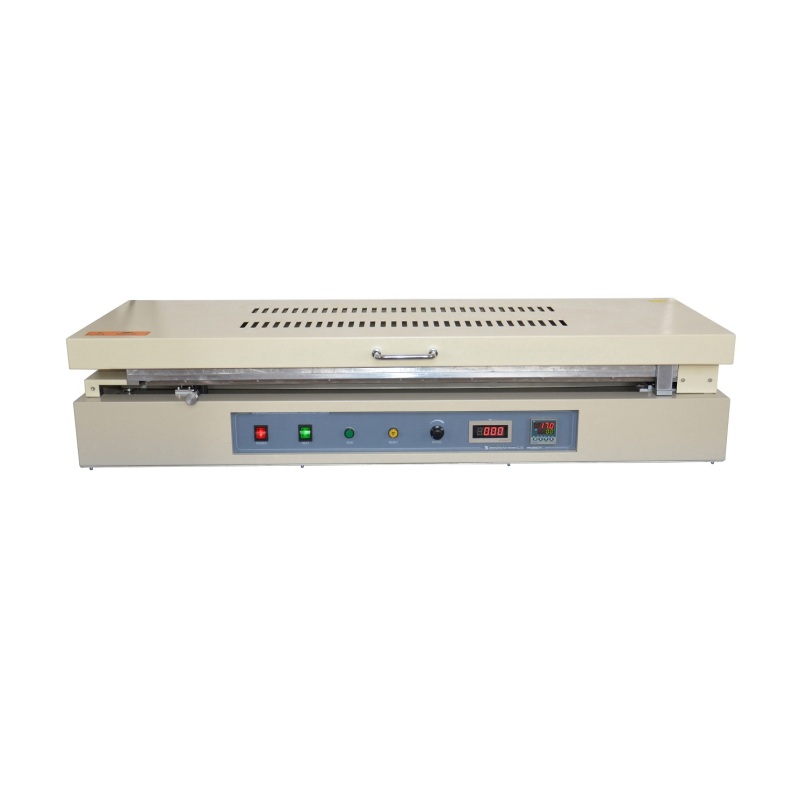

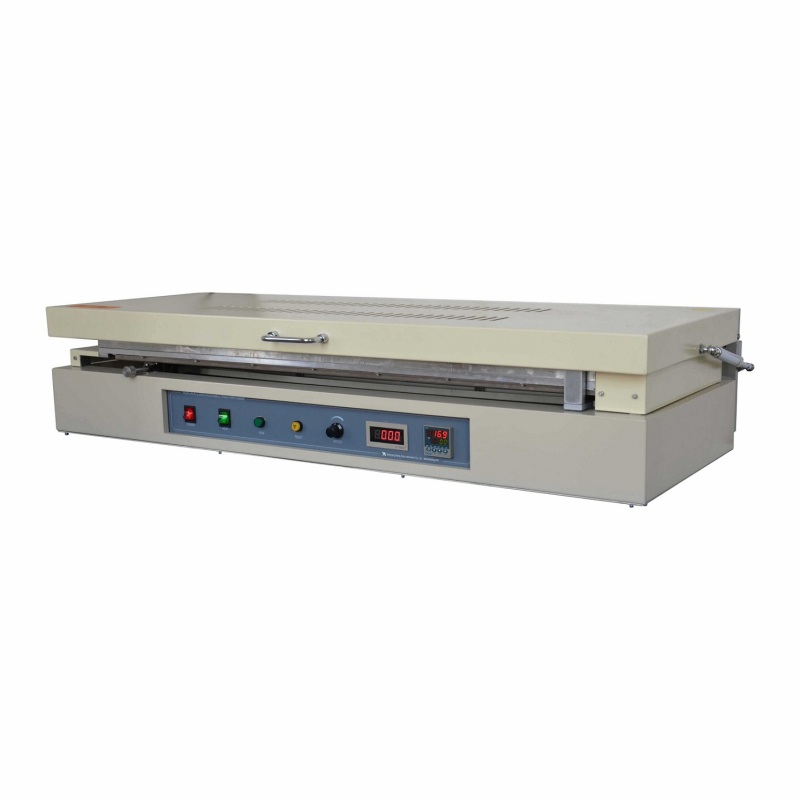

Large Tape Casting Flim Coater With Heatable Vacuum Bed
MSK-AFA-L1000 Compact Coater with automatic drying function is mainly used for coating liquid or colloidal film in laboratory. The equipment adopts the bottom vacuum to absorb the samples, and has bottom heating function. The heating temperature can reach up to 120℃, and the function of film baking is realized during the coating process, so that the film can be dried quickly.
- Shenyang Kejing
- Shenyang, China
- 10 working days
- 50 sets
- Information
Product Introduction:

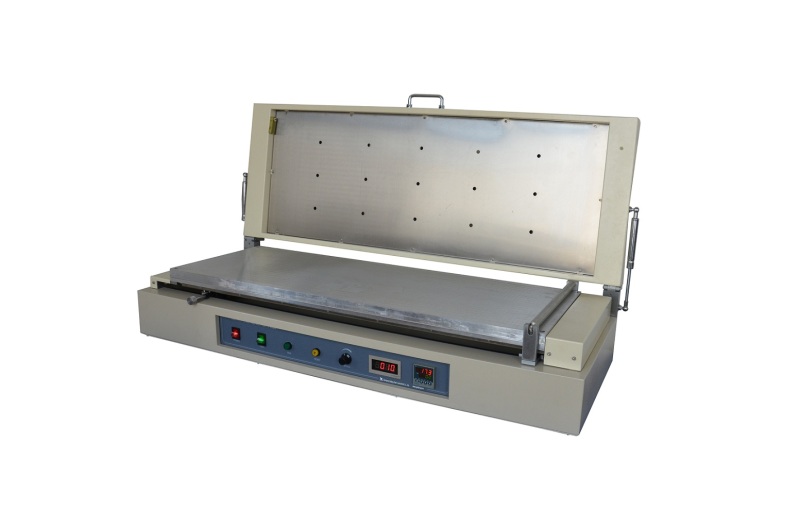

The MSK-AFA-L1000 compact automatic drying coater is mainly used for coating liquid or colloidal films in laboratory settings. The device employs a stepless variable-speed motor for precise control of coating speed, ensuring the doctor blade moves at a uniform rate. The stainless steel doctor blade has a constant weight, improving coating consistency and uniformity. The system uses a bottom vacuum to hold substrates and features bottom heating with a maximum temperature of 120 ℃, enabling simultaneous film drying during coating. The coater is equipped with a blade limiter, allowing adjustable coating lengths; the blade automatically resets when it reaches the limit. The top cover provides dust protection and insulation while enhancing the overall appearance of the equipment.
Main Features
1. The equipment adopts a stepless variable speed motor to precisely control coating speed.
2. The adjustable doctor blade is driven by a horizontal bar, and there is no special requirements for the size of the adjustable doctor blade.
3. The waste collection box placed on the left edge of the vacuum chuck can collect excessive paint to ensure the cleanliness of the equipment itself and the surrounding area.
4. The intelligent vacuum heating chuck and the drying system with digital display temperature control can adapt to the development of coating technology under high temperature conditions.
5. An exhaust dehumidification device can be added to the upper cover to assist in discharging gases generated during heating.
Technical Parameters
Product Name | MSK-AFA-L1000 Compact Coater with Automatic Drying Function | ||
Product Model | MSK-AFA-L1000 | ||
| Installation Conditions | Operating Environment: Humidity: 10–85% RH (non-condensing at 25°C); Temperature: 0–45°C 1. Water: Not required 2. Electricity: Single-phase AC220V 50Hz. 3. Gas: Vacuum negative pressure (vacuum pump) 4. Workbench: Recommended size 1500×600×700 mm, load capacity ≥120 kg 5. Ventilation: No special requirements | ||
Main Parameters (Specification) | 1. Power Supply: AC220V 50Hz 16A (actual supply according to the nameplate on the equipment) 2. Total Power: 3050W 3. Coating Base Size (L × W): 1000mm × 350mm 4. Vacuum Adsorption Area (L × W): 930mm × 300mm 5. Coating Speed: 10–100 mm/s (stepless speed adjustment) 6. Coating Length: 0–900 mm (adjustable) 7. Adjustable Film Applicator (Scraper): KTQ300 type, width 300 mm, film thickness adjustment range 0–5000 μm 8. Heating Method: Bottom vacuum plate heating (intelligent temperature control) 9. Maximum Heating Temperature: 120°C 10. Temperature Control Accuracy: ±2°C | ||
11. Product Specifications · With top cover closed: 1240 mm × 460 mm × 260 mm · With top cover open: 1240 mm × 550 mm × 650 mm · Weight: 60kg |
| ||
Optional Accessories
| No. | Name | Quantity | Image |
| 1 | 150mm Micrometer Grade Adjustable Film Applicator | Optional |  |
| 2 | Vacuum Pump (AP-1400V oilless vacuum pump) | Optional |  |
Warranty
One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
