Diamond Wire Saw With Pneumatic Tension System
1. The STX-202AQ small Pneumatically Tensioned Diamond Saw is specially designed for material researchers. It is used for precision cutting of brittle material samples. It can slice, cut, and square materials.
2. The materials that can be cut by the Pneumatically Tensioned Diamond Saw include ceramics, crystals, glass, metals, rocks, thermoelectric materials, infrared optical materials, composite materials, biomedical materials, etc.
3. The tensioning wheel of the Pneumatically Tensioned Diamond Saw adopts pneumatic tensioning, which can adjust the air pressure according to the wire diameter. When the wire diameter is too thin, it can effectively protect the cutting wire from breaking due to excessive tension.
- Shenyang Kejing
- Shenyang, China
- 10 working days
- 50 sets
- Information
Introduction of Pneumatically Tensioned Diamond Saw:

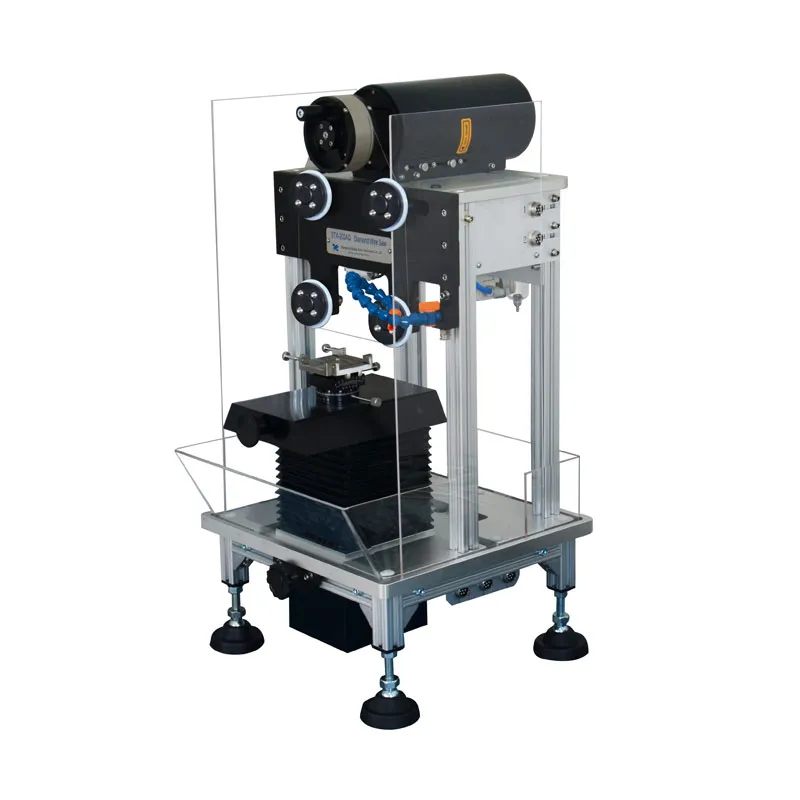

The STX-202AQ Mini Diamond Wire Saw is specifically designed for materials researchers for precision cutting of brittle material samples. It can perform slicing, sectioning, and shaping of materials, and its rotary turntable allows cutting at specific angles. The machine can cut a wide range of materials, including ceramics, crystals, glass, metals, rocks, thermoelectric materials, infrared optical materials, composites, and biomedical materials.
This diamond wire saw supports continuous cutting: once the cutting program is set, samples are fed automatically without manual adjustment, ensuring high dimensional accuracy of the cut specimens. The cutting wire operates in a single-wire reciprocating motion mode, allowing long usable wire length and extended service life per installation, which improves cutting efficiency.

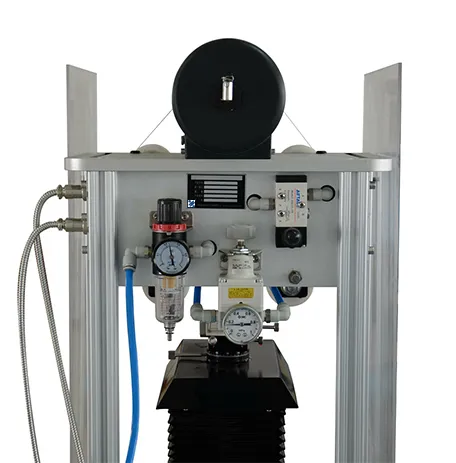

The tensioning wheel uses a pneumatic tensioning system, with air pressure adjustable according to the wire diameter. For very fine wires, this effectively prevents breakage due to excessive tension. When used in combination with an electric rotary stage, the machine can perform precision cutting with excellent surface quality. For ultra-thin precision cutting, the thickness of slices within approximately 1 inch can reach 0.08 mm.
Main Features of Pneumatically Tensioned Diamond Saw:
1. Diamond Wire Saw Machine with Air Tension can be used for cutting various materials of different hardness, especially for cutting brittle and easy-to-cleave crystals.
2. Diamond Wire Saw Machine with Air Tension is easy to operate and has excellent processing quality.
3. Diamond Wire Saw Machine with Air Tension adopts aluminum profile structure, which is beautiful and light.
4. Diamond Wire Saw Machine with Air Tension adopts pneumatic tensioning, which makes the tensioning force output more uniform and the adjustment more accurate.
5. Diamond Wire Saw Machine with Air Tension can use a minimum Ø0.08mm diamond wire
Pneumatic Wire Saw System Saw Technical Parameters:
Product Name | STX-202AQ Pneumatic Wire Saw System Saw | |
Product Model | STX-202AQ | |
High Tension Diamond Wire Saw Installation Conditions | 1. Temperature and humidity: 10-85%RH (at 25℃ without condensation) Temperature: 0-45℃. 2. There is no strong vibration source and corrosive gas around Diamond Wire Saw Machine with Air Tension. 3. Coolant：required (cutting oil is recommended) 4. Power Supply: Single-phase AC 220V ±10%, 50Hz . 5. Air source (compressed air)： ≥0.6MPa. 6. Workbench：1000mm×600mm×700mm recommended bearing weight of more than 80KG (solid cement table is best). 7. Ventilation device：no special requirements | |
High Tension Diamond Wire Saw Main Parameters | 1. Power supply interface: AC220 50Hz 10A 2. Pneumatic Tension Diamond Saw Total power: 100W 3.High Tension Diamond Wire Saw Main body structure：aluminum alloy frame 4. Cutting line length：≤20m 5. Cutting line diameter：≤0.45mm 6. Cutting line tensioning method：adjustable pneumatic tensioning 7. Spindle cutting rotation method：reciprocating rotation 8. Spindle speed：2--260rpm adjustable 9. Cutting speed: 0.05-40mm/min 10. Return speed: 1-40mm/min 11. Z axis effective stroke： ≤60mm 12. Y Axis effective stroke：≤50mm 13. Horizontal/tilt angle of two-dimensional fixture: Manual two-dimensional fixture： horizontal 0-360° tilt angle ±15° 14. Maximum spacing between the inner sides of the two guide wheels： 95mm 15. Maximum sample cutting diameter: effective value ≤ Φ50 mm 16. Pneumatic Tension Diamond Saw can load sample size (length × width × height)： 80mm×51mm×12mm 17. Pneumatic Tension Diamond Saw Control method： external independent control box PLC programmer + 7-inch touch screen 18. Video monitoring of cutting area： no | |
19.Product specifications： ·External dimensions：414mm×500mm×810mm； · weight：about 40kg |
| |
| Pneumatically Tensioned Diamond Saw Functions and Applications | 1. Ceramic materials: alumina ceramics, zinc oxide ceramics, zirconium oxide ceramics, target ceramics, honeycomb ceramics, semiconductor ceramics, conductive ceramics, non-conductive ceramics, etc.; 2. Crystal materials: graphite, silicon crystals (solar polycrystalline silicon, single crystal silicon), sapphire, alumina crystals, infrared glass crystals, silicon carbide crystals, cesium iodide crystals, etc.; 3. Glass materials: chalcogenide glass, optical glass, quartz glass, infrared glass, glass tubes, etc.; 4. Metal materials: iron, aluminum, copper, titanium alloy, magnesium alloy and other metals and alloys, non-ferrous metals (zinc sulfide, ferrite), etc.; 5. Composite materials: PVC board, carbon fiber composite materials, glass fiber composite materials, etc. 6. Rock materials: natural rocks, jade, meteorites, Pei Cui, agate, etc. precision cutting; Precision slicing of various high-value materials; slicing of geological light slices, geological thin slices (sedimentary rocks, igneous rocks, metamorphic rocks, ores), etc. 7. Thermoelectric materials: bismuth telluride, lead telluride, silicon-germanium alloy, etc. 8. Infrared optical materials: crystals such as zinc selenide, zinc sulfide, silicon, germanium, etc. 9. Biomedical materials: Bioplastic specimen sections (human and animal organs, combined sections of soft and hard tissues of the jaw, implant observation, dental crowns and bridges, histological specimens such as teeth); Combined sections of soft and hard tissues of orthopedics (fresh and hard tissues such as femur, hip joint, vertebral body, bone histological samples with implants, etc.); Medical tissue sections such as cardiovascular stent sections and stone sections;
Note: Materials with a hardness less than that of diamond wire can be precisely cut. | |
Compliance | CE Certified, UL or CSA certification is available at extra cost. | |
Pneumatically Tensioned Diamond Saw Standard Accessories
No. | name | qty | picture |
1 | Tension Wheel | 2 pcs |
|
2 | Leading Wheel | 2 pcs |  |
3 | Cross (Mount) Vise | 1 set |  |
4 | Diamond Cutting Wire | 3 rolls |  |
5 | Water Pump | 1 pcs |  |
6 | Resin Bonded Ceramics | 2 pcs |  |
7 | Wax Bar | 4 pcs |  |
Pneumatically Tensioned Diamond Saw Optional Accessories:
No. | name | functional type | picture |
1 | Diamond Cutting Wire (Ø0.145mm, Ø0.25mm, Ø0.35mm, Ø0.42mm) | （optional） |  |
2 | Cutting Oil | （optional） |
|
3 | Geological Slice Cutting Fixture | （optional） |  |
4 | Heating plate | （optional） |
|

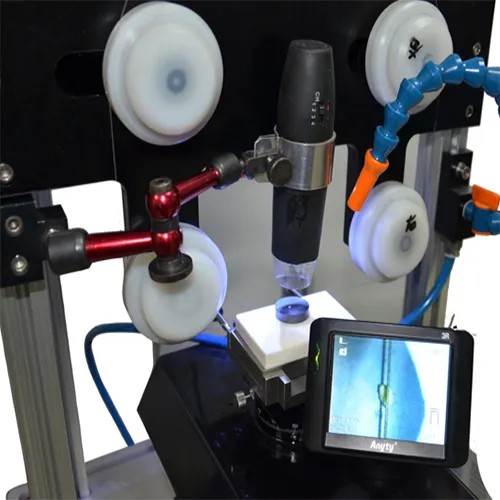

5 | Portable Microscope (3R Wireless Digital Microscope) | （optional） |  |

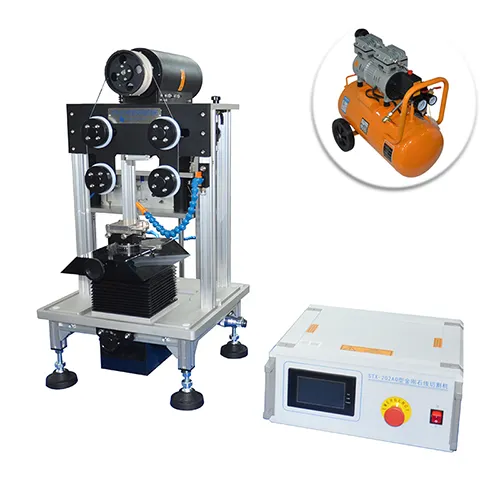

6 | Mute Oilless Air Compressor | （optional） |  |
7 | DX-100 Single Crystal Direction-Finder | （optional） |
|
Warranty
· One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
Enterprise Strength:
Shenyang Kejing participated in the 11th China Functional Materials and Applications Academic Conference (Chongqing, 5.17-20). Shenyang Kejing brought a variety of products with excellent performance to this exhibition, which attracted many visitors and customers to visit and communicate. The Shenyang Kejing team on site was sincere and answered questions for every customer with solid professional knowledge and rich experience.
Shenyang Kejing is committed to scientific research services for colleges and universities, research institutes, and production enterprises, that is, the products are positioned in the research market, mainly for colleges and universities, research institutions, laboratories and small-scale production in factories.
