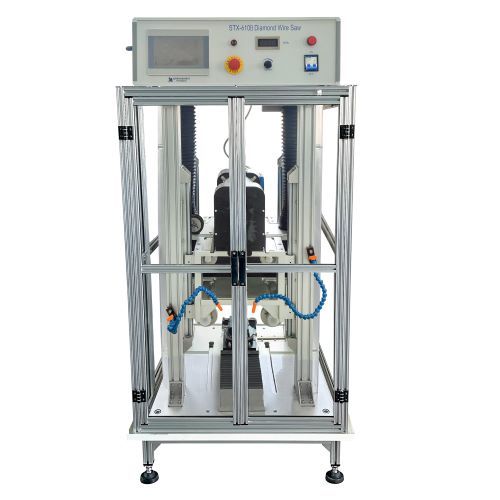

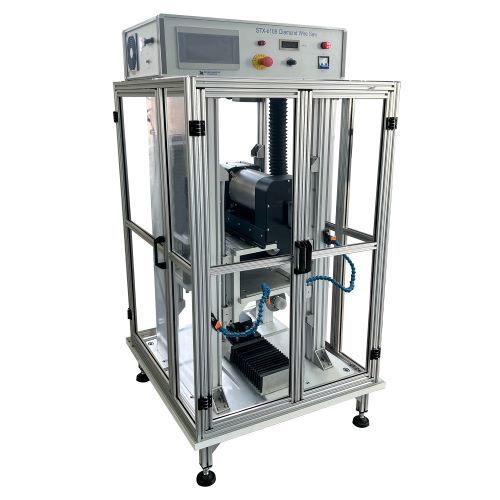

Diamond Wire Saw For Precision Cutting
1. Diamond saws for precision cutting specimens are CE certified cutting equipment.
2. Diamond saws for precision cutting specimens are suitable for precision cutting of ultra-thin specimens, with a thickness of up to 0.2mm.
3. Diamond saws for precision cutting specimens are equipped with an acrylic cover to enhance safety protection.
- Shenyang Kejing
- Shenyang, China
- 10 working days
- 50 sets
- Information
Introduction of precision diamond wire saw cutting machine:
STX-610B precision diamond wire saw cutting machine is a continuous cutting diamond wire cutting machine. After setting the cutting program, the sample is fed continuously without manual adjustment. The sample size after cutting is highly accurate. The cutting wire of precision diamond wire saw cutting machine adopts a single wire reciprocating motion mode. The usable wire length is long (150m), and the service life of one-time wire is long, which greatly improves the cutting efficiency. The tensioning wheel of precision diamond wire saw cutting machine adopts a pneumatic tensioning mode. The air pressure can be adjusted according to the thickness of the wire diameter. When the wire diameter is too thin, it can effectively protect the cutting wire from breaking due to excessive tension. When precision diamond wire saw cutting machine is used with an electric turntable, it can perform precision cutting. The surface of the cut sample is in good condition and presents a frosted surface without wireless marks.
Advantages of precision diamond wire saw with digital control:
1. Precision diamond wire saw with digital control is suitable for precision cutting of brittle and easily cleaved crystals.
2. Precision diamond wire saw with digital control uses diamond wire for cutting, and the cutting quality is excellent.
3. Precision diamond wire saw with digital control adopts aluminum profile structure, which is beautiful and light.
Technical parameters of diamond saws for precision cutting specimens：
| Product Name | STX-610B Precision Diamond Wire Saw | |
| Product model | STX-610B | |
| Main parameters | 1.Power supply interface：Three-pole socket with fuse AC220 50Hz 10A 2.Total power：≈500W 3.Main body structure：Aluminum alloy frame 4.Diamond wire length：≤150m 5.Diamond wire diameter：φ0.25-0.45mm 6.Diamond wire tensioning method：Adjustable pneumatic tensioner 7.Tensioning pressure adjustment range：0.1-0.4Mpa 8.Spindle cutting rotation method：Reciprocating rotation 9.Spindle drive motor：AC frequency conversion + reducer AC220V 300W 10.Spindle speed：0-8m/s adjustable 11.Z-axis worktable effective stroke：≤160mm (the machine selection is subject to the actual product) 12.Y-axis worktable effective stroke：≤180mm 13.Z, Y-axis feed accuracy：0.01mm 14.Rotation angle table：Manual: Horizontal 0-360° 15.Angle table：Manual: ±15° 16.Y-axis, Z-axis, R-axis drive motor：Precision stepper motor 17.Maximum distance between the inner sides of the two guide wheels：≤180mm 18.Maximum workpiece diameter and length for cutting：Φ150mm×150mm 19.Worktable center load-bearing capacity：≤10kg 20.Control method：PLC programmer + 7-inch touch screen 21.Parameter display form：number 22.Remote control handle (tool setting)：Wired remote control handle 23.Safety control device：Winding drum overtravel, wire breakage automatic stop, emergency stop switch 24.Machine weight：≈200kg | |
Compliance | CE Certified, UL or CSA certification is available at extra cost. | |
| NO. | Name | Quantity | Image link |
| 1 | Polyethylene (PE) tensioning wheel | 2 pcs |  |
| 2 | Polyethylene (PE) leading wheel | 2 pcs |  |
| 3 | diamond cutting wire | 2 rolls |  |
| 4 | water pump | 1 pcs |  |
| 5 | resin bonded ceramics | 2 pcs |  |
| 6 | wax bar | 4 pcs |  |
Optional accessories for Precision Diamond Wire Saw:
| S/N | Name | Functional Type | Picture |
| 1 | diamond cutting wire (Ø0.125、Ø0.25、Ø0.35、Ø0.42mm) | (functional) |
|
| 2 | cutting oil | (functional) |  |
| 3 | mute oilless air compressor | (functional) |  |
Application:
Mainly used for precision cutting of material analysis samples, such as ceramics, crystals, glass, metals, rocks, thermoelectric materials, infrared optical materials, composite materials and biomedical materials, etc.
