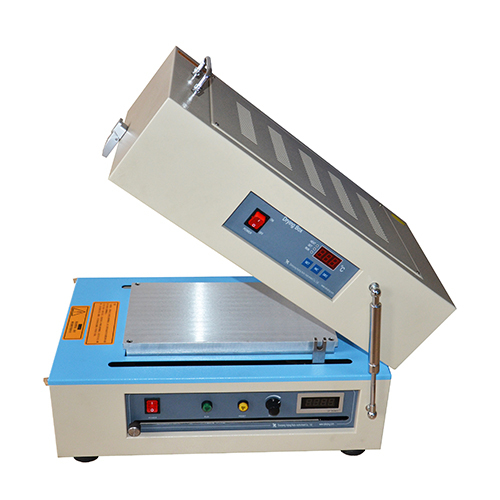

Compact Tape Casting Film Coater With Top UV Cover
MSK-AFA-IIID-UV UV Casting Coater with automatic drying function adopts bottom heating and is designed and developed by our company. The upper cover adopts UV light source and is especially suitable for materials sensitive to UV light, which can quickly solidify the coated film. In addition, the UV lamp also has a polymerization function, which can polymerize the monomer into a polymer film.
- Shenyang Kejing
- Shenyang, China
- 10 working days
- 50 sets
- Information
Product Introduction
MSK-AFA-IIID-UV UV Curing Automatic Doctor Blade Coater is a small, bottom-heated automatic film coating and doctor blade machine developed by our company. It is primarily used in laboratories for coating liquid or colloidal films. The device features a stepless variable-speed motor for precise control of coating speed, ensuring the doctor blade moves at a uniform rate for consistent film application. The doctor blade is made of stainless steel with a constant weight, improving coating uniformity and consistency.

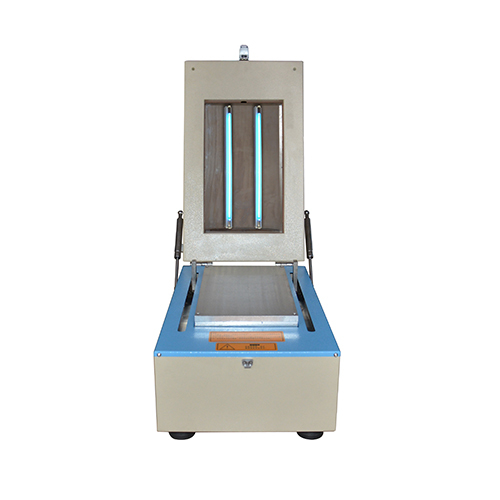

Samples are fixed via bottom vacuum adsorption, and the machine includes bottom heating with a maximum temperature of 120°C, allowing simultaneous film drying during coating. The top cover is equipped with a UV light source, making it ideal for UV-sensitive materials by rapidly curing the coated film. Additionally, the UV lamp facilitates polymerization, converting monomers into a polymer film.
Main Features
1. The equipment adopts a stepless variable speed motor to precisely control coating speed.
2. The adjustable doctor blade is driven by a horizontal bar, and there is no special requirements for the size of the adjustable doctor blade.
3. The waste collection box placed on the left edge of the vacuum chuck can collect excessive paint to ensure the cleanliness of the equipment itself and the surrounding area.
4. The intelligent vacuum heating chuck and the drying system with digital display temperature control can adapt to the development of coating technology under high temperature conditions.
5. Bottom heating is adopted and film baking is performed during the process of coating.
6. The upper cover adopts UV light source.
7. CE certified
Technical Parameters
Product Name | MSK-AFA-IIID-UV UV Casting Coater with Automatic Drying Function | ||
Product Model | MSK-AFA-IIID-UV | ||
| Installation Requirements | Operating Environment: Humidity 10–85% RH (no condensation at 25℃) 1. Water: Not required 2. Power: Single-phase AC220V 50Hz. 3. Gas: Vacuum negative pressure (vacuum pump) 4. Workbench: Recommended size 800×600×700mm, load capacity ≥120 kg 5. Ventilation: No special requirements | ||
Main Parameters (Specification) | 1. Power supply: Dual supply — Bottom: AC220V 50Hz 10A, Top: AC220V 50Hz 10A (actual voltage/current according to the label on the equipment) 2. Total power: 1080 W 3. Size of coated base: 360mm×200mm (length×width) 4. Vacuum size (max): 300mm×150mm (length×width) 5. Coating speed: 10mm/s-100mm/s (steplessly adjustable) 6. Coating length: 0–300 mm (adjustable) 7. Adjustable film applicator (doctor blade): KTQ150, width 150 mm, film thickness adjustable 0–5000 µm 8. Heating method: Bottom vacuum plate heating (intelligent temperature control) 9. Maximum heating temperature: 120 ℃ (reduced to below 50 ℃ when using UV lamp) 10. Temperature control accuracy: ±2 ℃ 11. UV curing: UV lamps 8 W × 3, wavelength 365 nm | ||

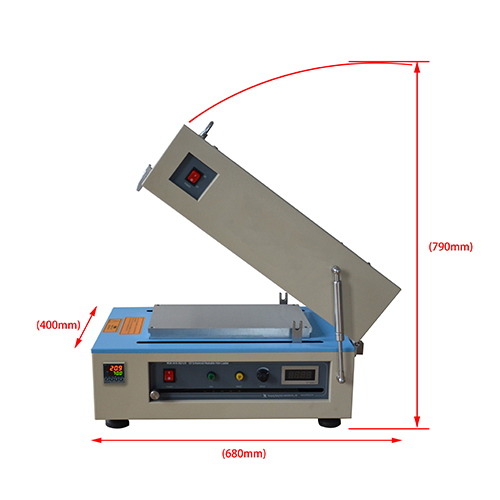

12. Product Specifications: · Closed state: 610mm (L) × 390mm (W) × 350mm (H) · Open state: 800mm (L) × 390mm (W) × 750mm (H) · Weight: 42kg |
| ||
Warranty
One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
