How to Eliminate Secondary Clamping Errors in Precision Crystal Orientation and Cutting?

1. Precision Challenges in Materials Science:

In the field of advanced materials research—particularly concerning wide-bandgap semiconductor materials such as Silicon Carbide (SiC) and Gallium Nitride (GaN)—crystal orientation is of decisive importance. Even a deviation of merely 0.1 degrees can lead to significant fluctuations in electron mobility, thermal conductivity, and the quality of epitaxial growth.

For years, laboratory researchers have faced a "hidden enemy": secondary clamping errors. In traditional workflows, crystal ingots are typically first oriented using a standalone X-ray diffractometer (XRD) and subsequently manually transferred to a separate cutting machine. However, the very moment the sample is released from its clamp and handled, the originally precise reference coordinate system is lost, thereby introducing cumulative angular errors—errors that are virtually impossible to correct or eliminate through subsequent calibration methods.

2. What is "Integrated Crystal Orientation Cutting"?

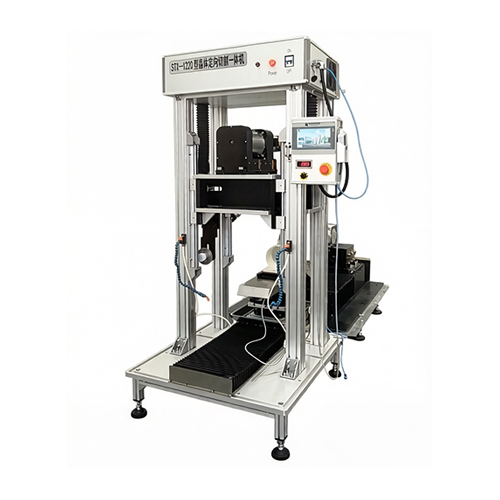

To comprehensively resolve this challenge, the STX-1220 integrated crystal orientation cutter introduces a revolutionary new paradigm: In-situ Orientation and Cutting.

By directly integrating a precision X-ray goniometer with a diamond wire cutting system, the STX-1220 empowers researchers with the following capabilities:

Precise identification of crystal planes using XRD technology.

Precise locking of the coordinate system via programmatic control.

The ability to immediately initiate the cutting process without requiring any manual handling or physical contact with the sample.

This "one-stop" workflow ensures perfect synchronization between the cutting plane and the previously oriented crystal plane, thereby achieving positional and angular accuracy of ≤0.01°—a level of extreme precision that is fundamentally unattainable through traditional manual handling operations.

3. Key Technical Advantages of the STX-1220 Integrated Crystal Orientation Cutter:

As a specialized manufacturer of laboratory equipment, we have meticulously optimized the STX-1220:

Zero-Damage Diamond Wire Saw Technology: Unlike traditional ID saws or abrasive cutting wheels, our ultra-fine diamond wire (combined with a reciprocating cutting motion) exerts minimal mechanical stress on the sample. This yields superior results for brittle crystalline materials—such as Indium Phosphide (InP)—as well as materials highly sensitive to mechanical stress, such as optical quartz. Integrated High-Resolution XRD: The system features a precision alignment function with a digital display, ensuring that specific positional and angular requirements are fully met prior to the initial cut.

Programmable Precision: Equipped with a touchscreen control system, users can flexibly adjust the cutting speed (0.01–40 mm/min) and spindle speed (up to 1500 RPM) based on the hardness of the specific material being processed.

4. Application Fields Across High-Tech Industries:

Semiconductors: Preparation of SiC (Silicon Carbide) and GaN (Gallium Nitride) substrates for power electronics devices.

Geology: Precision analysis of mineral crystal structures.

Optics: Cutting laser crystals (such as Nd:YAG or Sapphire) with zero-axis tilt.

5. FAQ: Optimizing Your XRD Alignment Workflow:

Q: Why do I observe inconsistencies in the XRD diffraction patterns obtained after cutting? A: This is most likely caused by "wobble" occurring during the transfer of the sample from the crystal orientation stage to the cutting stage. The STX-1220 completely eliminates this issue by keeping the sample fixed on the same 4-axis goniometer throughout the entire processing workflow.

Q: Can this equipment handle extremely hard materials? A: Yes. Through adjustable diamond wire tension and a reciprocating cutting motion, the Integrated crystal orientation cutter can effortlessly cut a wide range of materials—from soft polymers to the hardest ceramics and gemstones.
