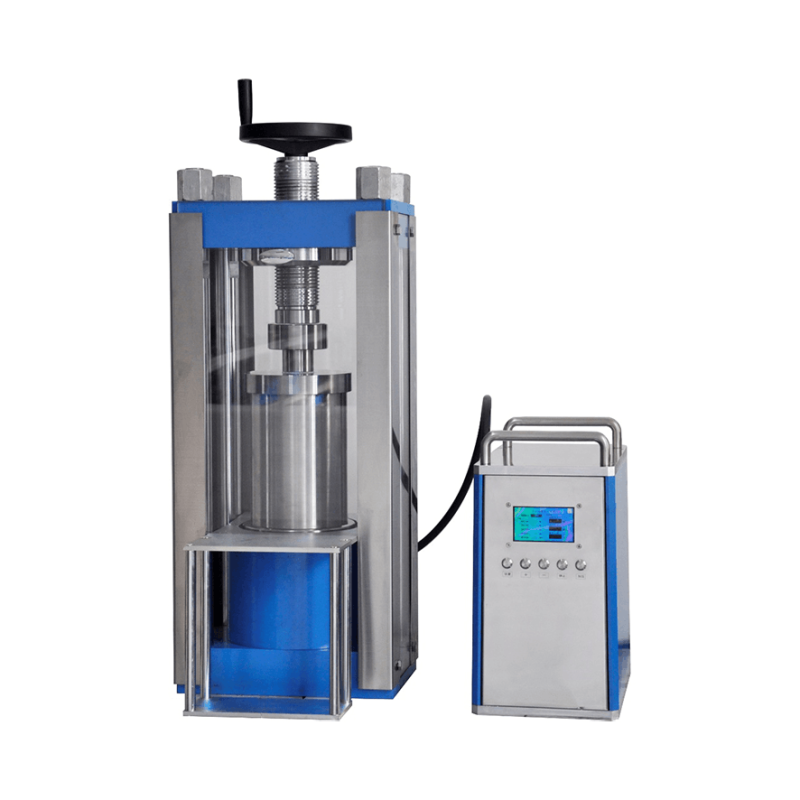

Electric Cold Isostatic Press With 30mm ID Die
Brand Shenyang Kejing
Product origin Shenyang, China
Delivery time 22 working days
Supply capacity 50 sets
CIP-30MAHS Electric Cold Isostatic Press is to place the product in a tightly closed container filled with liquid, and after connecting to power supply, the liquid applies equal pressure onto each side of sample surface. With the advancement of science and technology and our company's further research on powder materials, isostatic presses are more and more widely used in the forming of powder metallurgy, composite materials, refractory materials, ceramics, cemented carbide / high-strength alloy and other materials.
Technical Parameters
Product Name | CIP-30MAHS Electric Cold Isostatic Press |
Technical Parameters (Specification) | 1. Isostatic pressure chamber: Ø30mm×90mm 2. The maximum pressure of chamber: 278MPa (if a higher pressure of 400-500MPa is needed, please contact the sales person of our company.) 3. Pressure range: 0-20T (0-33.3MPa) 4. Hydraulic press (electric): 20T 5. Work space: workbench diameter D1:98mm piston diameter D2: 88mm distance between top bracket and workbench H1:345mm distance between screw lever and workbenchH2: 330mm
|
Product Dimension and Weight | Dimension: 440mm×430mm×560mm Weight: 100kg
|
Warranty
One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
