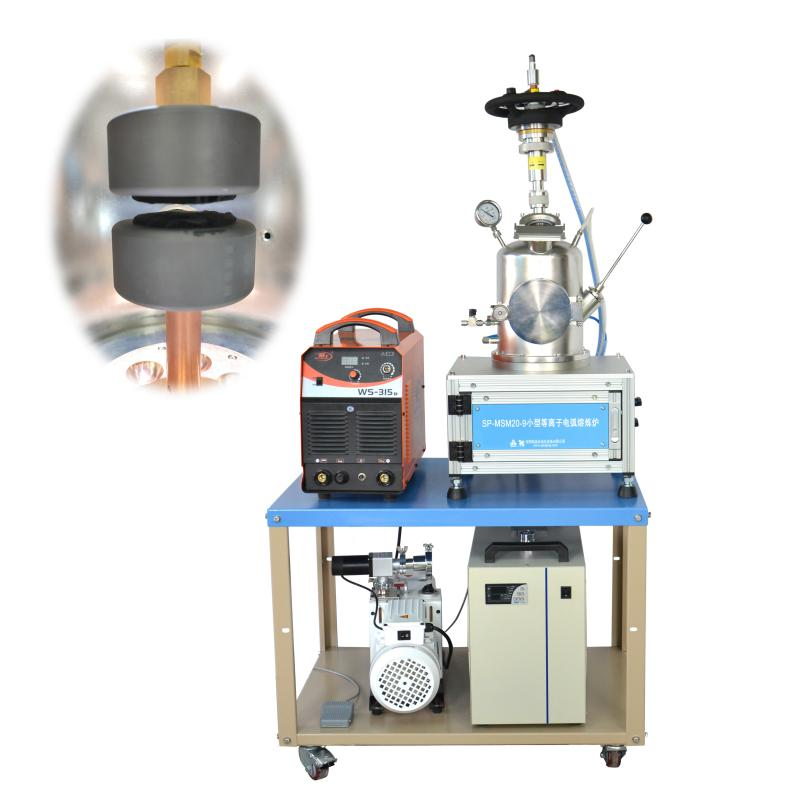

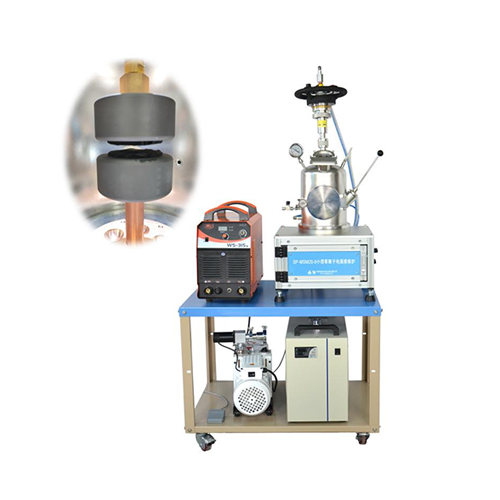

SP-MSM20-9 Small Plasma Arc Melting Furnace
1. After years of research and development, our plasma arc melting furnace can prepare multiple samples (fewer than seven) simultaneously, accelerating experimental progress.
2. Our plasma arc melting furnace is suitable for a variety of locations, including individuals, institutions, and research laboratories, and its compact size meets your needs.
3. With a maximum melting temperature of 3500°C, our plasma arc melting furnace can melt most metals, offering a wide range of applications.
- Shenyang Kejing
- Shenyang, China
- 10 working days
- 50 sets
- Information
Introduction of Plasma Arc Melting Furnace:
The SP-MSM20-9 vacuum arc melting furnace is a small arc melting furnace. This vacuum arc melting furnace allows for multiple melting of alloy ingots without disrupting the protective gas atmosphere, and can prepare multiple samples (fewer than seven) simultaneously. It includes a set of graphite electrode crucibles with upper and lower electrodes measuring 2 inches in diameter. This vacuum arc melting furnace is ideal for preparing metal and alloy samples in universities and research institutes. It can be used for the preparation, purification, and mixing of new alloy materials.
Features of the laboratory arc melting system:
·The laboratory arc melting system features a 120mm Ø furnace door for convenient sample loading and unloading.
·The laboratory arc melting system features front and rear observation windows for easy observation of arc ignition and melting conditions.
·The vacuum chamber, copper crucible, and arc electrode of the laboratory arc melting system are all water-cooled.
·The vertical movement is designed with a steering wheel, and the joystick allows for flexible operation.
·To ensure that alloy ingots can be turned over for multiple melting cycles without disrupting the protective gas atmosphere, the laboratory arc melting system utilizes a robotic turning mechanism.
·The laboratory arc melting system's crucibles are small and numerous, facilitating the preparation of multiple samples while preventing cross-contamination between samples.
·The laboratory arc melting system is simple, safe, and convenient to operate, with a compact design and a minimal footprint.
 |  |  |  |  |  |
| Chamber Door | Front Observation Window | Rear Observation Window | Tilting Manipulator | Melt Electrode (Illuminating Flashlight) | Electrode Control (Arc Striking and Current Control) |
Technical Specifications of plasma arc melting furnace:
| Product Name | SP-MSM20-9 Small Plasma Arc Melting Furnace |
| Model | SP-MSM20-9 |
| Installation Requirements | This vacuum arc melting furnace must be operated at a temperature of 25°C ± 15°C and a humidity of 55% RH ± 10% RH. 1. Water: The equipment is equipped with a self-circulating water cooler (filled with purified or deionized water). 2. Electricity: AC 380V 50Hz (63A air switch), must be properly grounded. 3. Gas: The equipment chamber must be filled with argon (purity exceeding 99.99%). You must provide your own argon gas cylinder (with a Ø6mm double-ferrule connector). 4. Workbench: (Floor-standing) Dimensions: 900mm × 600mm × 700mm, load-bearing capacity: 200kg or more. 5. Ventilation: Required. |
| Main Parameters | 1. Power Supply of vacuum arc melting furnace: AC 380V 50Hz |
| 2. Total Power of vacuum arc melting furnace: <12kW | |
| 3. Vacuum Chamber: Ø200mm × 300mm | |

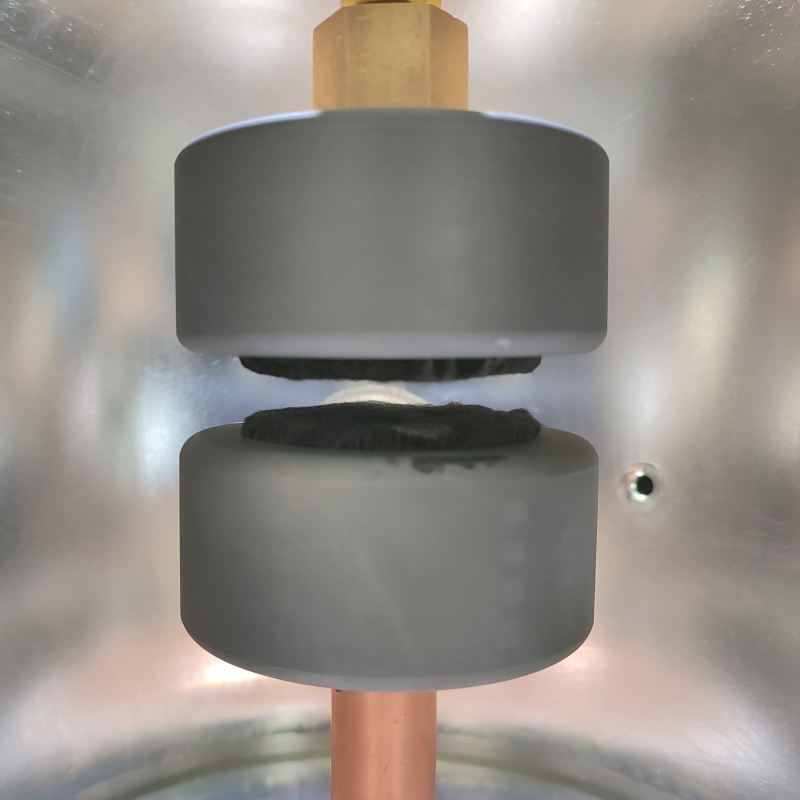

4. Crucible: The standard crucible has 7 stations, 6 of which are melting stations. Dimensions are φ20 × 8mm, and the melting weight is 8g (stainless steel). Graphite Electrode Crucible: Upper and Lower Electrodes are 2 inches in diameter. Maximum melting temperature is 3500°C. | |
| 5. Vacuum: The standard rotary vane pump can reach 10-3 mbar, while the optional molecular pump can reach 10-5 mbar. | |
| 6. Non-Consumable Arc Starting Electrode: φ4 tungsten needle (W) | |
| 7. Application: Vacuum arc melting furnace is suitable for melting metals with a lower melting point than tungsten. | |
8. Melting Temperature: Maximum temperature can reach 3500°C, melting almost all metals.
4.5g tungsten metal sample
10g tungsten metal sample | |
| 9. Output Current: 20-315A | |
10. Product Specifications: · Dimensions: 900mm × 600mm × 1800mm (including furnace frame); · Weight: 50kg | |
| Compliance | CE Certified, UL or CSA certification is available at extra cost. |
Vacuum Environment of vacuum arc melting furnace:
A plasma arc melting furnace creates a vacuum inside the furnace to reduce the impact of atmospheric gases like oxygen and nitrogen on the metal melting process, preventing oxidation and nitridation of the metal and ensuring the purity of the molten metal.
When melting metal in normal atmospheric conditions, oxygen reacts with the metal to form metal oxides, reducing its purity and properties. Nitrogen can also react with certain metals to form nitrides. Vacuuming the furnace prevents these reactions, creating conditions for high-quality melting.
