MSK-SP-01A-VSN Pneumatic Shaping Nozzle
1. Unlike traditional nozzles—which rely on high pressure to force liquid through small orifices—our Spray Nozzles for Coating Machines utilize high-frequency sound waves to atomize and expel liquid, ensuring clog-free operation of the equipment.
2. Specifically engineered to generate a highly controllable, soft, and fine mist, these Spray Nozzles for Coating Machines significantly reduce overspray and bounce-back.
- Shenyang Kejing
- Shenyang, China
- 10 working days
- 50 sets
- Information
Introduction of Laboratory Coating Pneumatic Shaping Spray Nozzles:

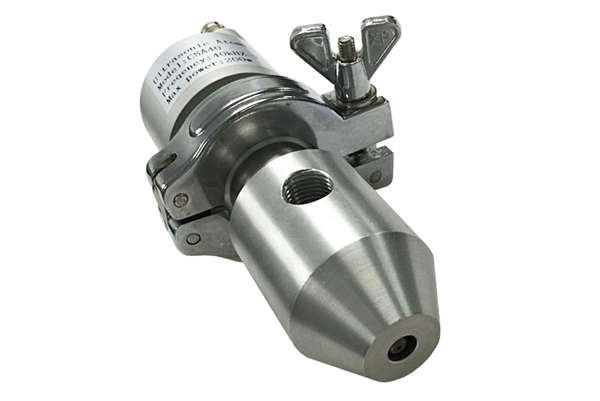

· The MSK-SP-01A-VSN Laboratory Coating Equipment Spray Nozzle is a critical component of ultrasonic atomization systems. Featuring a unique fine-mist spray capability, it significantly reduces overspray, thereby saving costs and minimizing atmospheric pollution.
· The nozzle is inherently a non-clogging, self-cleaning device; it utilizes high-frequency sound waves (beyond the range of human hearing) to atomize liquids, rather than relying on high pressure to force liquids through tiny orifices. Ultrasonic nozzles open up a wide range of new application possibilities.
For instance, these nozzles are ideal for applications requiring extremely low flow rates. They offer unique advantages when spraying suspensions containing particulate matter; the ultrasonic action of the nozzle itself keeps the particles uniformly suspended throughout the entire spraying process. This results in a more uniform dispersion of functional particles within thinner coating layers.
Parameters of Coating Atomizing Nozzles:
| Product Name | Pneumatic Shaping Nozzle MSK-SP-01A-VSN |
| Product Model | MSK-SP-01A-VSN |
| Technical Specifications | 1. Quick Clamp: KF25 2. Interface: 1/4" NPS port, for connection to an air compressor or gas cylinder |
| Installation Diagram |  |
| Product Specifications |  |
Materials of Coating Atomizing Nozzles:
· The MSK-SP-01A-VSN Pneumatic Shaping Spray Head features a corrosion-resistant construction made of titanium and stainless steel. With no moving parts subject to wear, it offers an exceptionally long service life and superior acoustic properties. As the sole conduit through which the atomized liquid is expelled, the design quality of the spray head plays a pivotal role in determining the quality and formation characteristics of the resulting mist.
Operating Principle of Spray Nozzles for Coating Machines:
The pneumatic shaping spray head serves two primary functions: guiding the flow of the liquid and atomizing it into a mist. Flow guidance directs the liquid into and out of the system in a controlled manner, while atomization transforms the liquid into a fine mist of minute droplets. This process increases the contact surface area between the liquid and the substrate being coated, thereby facilitating the rapid and uniform deposition of the liquid material onto the surface.
Features of Spray Nozzles for Coating Machines:
1. Designed for use exclusively with cylindrical-type spray heads.
2. Easy to install.
FAQ:
Q: Can this nozzle handle solutions with suspended particles?
A: Yes. The high-frequency ultrasonic vibrations keep particles evenly suspended during the spray process, preventing agglomeration and ensuring a uniform dispersion in the final coating.
Q: Does the MSK-SP-01A-VSN require a high-pressure pump?
A: No. Unlike traditional nozzles that force liquid through a tiny orifice under high pressure, this nozzle uses ultrasonic sound waves for atomization. It is highly effective even at very low flow rates.
Q: Will the nozzle clog over time?
A: The ultrasonic nature of the nozzle creates a self-cleaning effect, making it virtually clog-free, even when used with highly viscous or particulate-rich liquids.
