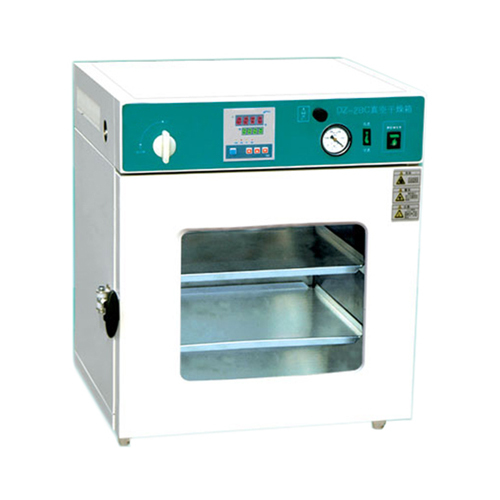

DZ-2BC Vacuum Drying Oven for Samples
1. This vacuum drying oven is specifically designed for materials that are heat-sensitive, prone to oxidation, or possess complex compositions.
2. The vacuum level of this drying oven can reach <60 Pa, offering precise temperature control.
3. Our vacuum drying oven is suitable for drying, sterilization, and material heat treatment applications in university laboratories and scientific research institutions.
- Shenyang Kejing
- Shenyang, China
- 22 working days
- 50 sets
- Information
Introduction of the Lab Vacuum Drying Oven:
The DZ-2BC lab vacuum drying oven is designed for use in the laboratories of industrial and mining enterprises, universities, research institutes, healthcare facilities, and similar organizations to perform drying, sterilization, and heat treatment of items under vacuum conditions.
Key Features of the Laboratory Vacuum Drying Oven:
1. The working chamber of the vacuum drying oven is fabricated from stainless steel or high-quality cold-rolled steel plate, and has undergone anti-corrosion treatment to ensure long-term durability.
2. The temperature control instrumentation can be optionally configured with either a microcomputer-based controller or a digital display controller.
3. The vacuum drying oven features functions for setting and monitoring temperature, a dual digital display, an over-temperature alarm, and a programmable timer.
4. The tightness of the chamber door seal is adjustable; the door is integrally formed and fitted with a high-temperature-resistant silicone rubber gasket to ensure a high vacuum level is maintained within the chamber.
5. This precision vacuum drying oven utilizes an embedded heating plate design, offering rapid heating, uniform temperature distribution, and highly efficient performance.
Technical Parameters of the Precision Vacuum Drying Oven:
| Product Model | DZ-2BC laboratory vacuum drying oven |
| Technical Specifications of laboratory vacuum drying oven | 1. Power Supply: 220V 2. Power Consumption: 1400W 3. Temperature Control Range: Ambient +10°C to 200°C 4. Temperature Fluctuation: ±1°C 5. Vacuum Level: <60 Pa 6. Working Chamber: 415 mm × 345 mm × 370 mm |
| Specifications of laboratory vacuum drying oven | Dimensions of precision vacuum drying oven: 720 mm × 560 mm × 545 mm; Weight: 75 kg |
| Compliance | CE Certified, UL or CSA certification is available at extra cost. |
What Users Gain from Purchasing This laboratory vacuum drying oven:
Oxidation-Free Drying Environment:
By creating an ultra-high vacuum environment (<60 Pa), the system effectively prevents materials from oxidizing or degrading during the drying process. This makes it particularly well-suited for experiments involving metal powders, semiconductor components, and flammable or explosive materials.
Low-Temperature, High-Efficiency Dehydration:
Leveraging the principle that a vacuum lowers the boiling point of liquids, the DZ-2BC rapidly evaporates moisture or solvents at lower temperatures. This significantly preserves the biological activity of heat-sensitive biological samples and the potency of chemical reagents.
Patented Embedded Heating Technology:
Unlike traditional external heating methods, the internal embedded heating plates dramatically accelerate the heating rate and ensure a more uniform temperature distribution throughout the chamber, thereby preventing localized overheating of samples.
Industrial-Grade Sealing Performance:
The integrally molded, high-temperature silicone rubber door gasket—combined with an adjustable door-tightness mechanism—guarantees vacuum stability during prolonged experimental runs, while simultaneously reducing the operational workload on the vacuum pump.
Comprehensive Application Coverage:
Powder Metallurgy & Ceramics:
Used for the dehumidification of metal powders and the vacuum degassing of ceramic green bodies.
Biomedical Research:
Employed for the vacuum drying of precision biological products, serving as an alternative to traditional high-temperature drying to prevent the inactivation of active ingredients.
Lithium-ion Battery R&D:
Utilized for the deep removal of moisture from electrode sheets and battery cells prior to electrolyte injection.
Electronic Components:
Used to eliminate internal stress and trace residual moisture within complex electronic assemblies.
