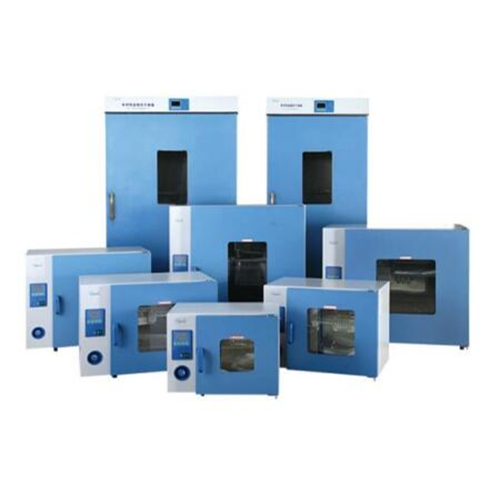

DHG-9000 Series Forced-Air Drying Oven
1. This forced air drying oven features a temperature control range of RT+10°C to 250°C, capable of meeting the requirements of most laboratory applications.
2. Specifically designed for industrial enterprises and scientific research laboratories, this forced air drying oven serves as a safe and stable device for drying, baking, and sterilization.
3. The forced air drying oven features high-precision PID temperature control and a patented hot air circulation system; it is available in various specifications and supports RS485 data export.
- Shenyang Kejing
- Shenyang, China
- 22 working days
- 50 sets
- Information
Introduction of the Forced Air Oven:
The DHG-9000 series forced air ovens are manufactured using advanced laser and CNC machining equipment. These ovens are intended for use in industrial enterprises, analytical laboratories, and scientific research institutions for drying, baking, wax melting, and sterilization purposes.
Technical Specifications of the Convection Drying Oven:
| Model | DHG-9030(A) (101-0) | DHG-9070(A) (101-1) | DHG-9140(A) (101-2) | DHG-9240(A) (101-3) | DHG-9420A (101-4) | DHG-9620A | DHG-9920A |
| Power Supply Voltage | AC220V 50HZ | AC380V 50HZ | |||||
| Temperature Control Range | RT+10～200℃/RT+10～250℃ | ||||||
| Temperature Fluctuation | ±1.0℃ | ||||||
| Temperature Resolution | 0.1℃ | ||||||
| Temperature Uniformity | ±3% (Test point: 100°C) | ||||||
| Operating Ambient Temperature | +5～40℃ | ||||||
| Input Power | 850W | 1550W | 2050W | 2450W | 3100W | 4000W | 5200W |
| Capacity | 30L | 80L | 136L | 220L | 420L | 620L | 1000L |
| Interior Dimensions (mm) W×D×H | 340×320×320 | 450×400×450 | 550×450×550 | 600×500×750 | 640×585×1355 | 840×600×1355 | 800×700×1590 |
| Exterior Dimensions (mm) W×D×H | 620×440×490 | 740×530×630 | 840×580×730 | 880×630×930 | 780×730×1780 | 980×800×1880 | 1050×880×2060 |
Shelves (Standard Configuration) | 2 pieces | 3 pieces | 4 pieces | 4 pieces | |||
| Timing Range | 0~9999min | ||||||
| Compliance | CE Certified, UL or CSA certification is available at extra cost. | ||||||
※ Performance parameters were tested under no-load conditions at an ambient temperature of 20°C and an ambient humidity of 50% RH.
Key Features of the Forced Air Laboratory Drying Oven:
· The interior chamber of the oven is constructed from mirror-finish stainless steel using argon arc welding, while the exterior casing is made of high-quality steel plate, resulting in an aesthetically pleasing and modern design.
· The oven utilizes a microprocessor-based PID temperature controller with a digital display and over-temperature deviation protection; it also features a timing function, ensuring precise and reliable temperature control.
· The hot air circulation system consists of a fan capable of continuous operation at high temperatures and an optimized air duct design, which significantly enhances temperature uniformity within the working chamber.
· The oven employs a new type of synthetic silicone sealing strip, capable of withstanding prolonged high-temperature operation; this ensures a long service life and facilitates easy replacement.
· The air intake and exhaust volume within the chamber can be conveniently adjusted directly from the temperature control panel.
· An independent temperature-limiting alarm system is available (optional); should the temperature exceed the preset limit, the unit automatically cuts off power to ensure safe experimental operation and prevent accidents.
· The oven can be equipped with a printer or an RS485 interface (optional) to connect to a printer or computer, enabling the recording and monitoring of temperature parameter fluctuations.
In-Depth Analysis of Application Fields:
Electronics & Semiconductors: Dehumidification and aging testing of electronic components.
Biopharmaceuticals: Sterilization and drying of laboratory glassware, as well as temperature-controlled preservation of samples.
Materials Science: Curing of composite materials and dehydration/drying of chemical raw materials.
Food Industry: Analysis of dry matter content in samples and simulation of baking processes.
