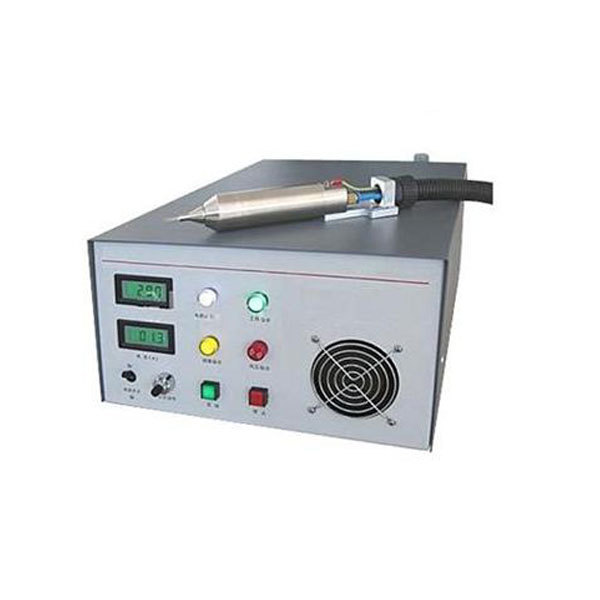

Atmospheric Plasma Jet-Flow System (Plasma Pen)
GSL-1100X-PJF-(A) Plasma Surface Treatment Instrument is a compact atmospheric plasma jet-flow system for surface treatment, it is mainly composed of a radio frequency generator and an plasma beam head. The jet-flow plasma beam can activate and clean the surface of materials (such as single wafers, optical components, plastics, etc.) under lower temperature and non-vacuum conditions.
- Shenyang Kejing
- Shenyang, China
- 10 working days
- 50 sets
- Information
Product Introduction
The GSL-1100X-PJF-(A) Plasma Surface Treatment System is a compact atmospheric plasma jet device composed primarily of an RF generator and a plasma jet head. The emitted plasma beam activates and cleans material surfaces—such as wafers, optical components, and plastics—at low temperatures and under non-vacuum conditions. It provides rapid cleaning with excellent surface cleanliness, enabling effective pre-treatment for high-quality epitaxial film growth and significantly improved optical coating performance.
The handheld component is lightweight and portable, making it convenient for outdoor or on-site use. Its simple operation allows users to precisely clean any targeted area of the material surface with ease. This compact plasma surface treatment system delivers fast, efficient cleaning without the need for a vacuum chamber, offering exceptional flexibility for diverse application environments.
Main Features
1. High-speed processing of material surface without requirements for vacuum or chamber environment
2. Portable design enables it to be used on site with low cost.
3. Compact in structure and light in weight.
4. Simple operation, safe and reliable.
5. CE certified.
Technical Parameters
Product Name | GSL-1100X-PJF-(A) Plasma Surface Treatment Instrument |
Product Model | GSL-1100X-PJF-(A) |
Main Parameters (Specification) | 1. Input power: 110V/220V 50Hz/60Hz <1000W 2. Output frequency: 20kHz-23kHz 3. Input gas pressure: 0.275MPa (min), optional: air, nitrogen, argon, mixed gas (but no flammable or explosive gas) 4. Plasma working pressure: 0.048MPa-0.068MPa 5. plasma beam head: 1 plasma beam head, round head 10mm-12mm or rectangular head 15mm-18mm 6. Working environment: temperature <42℃, humidity ≤40%RH, no flammable gas |
Product Dimension and Weight | Dimension: 500mm×380mm×210mm Weight: 10kg |
Warranty
One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
