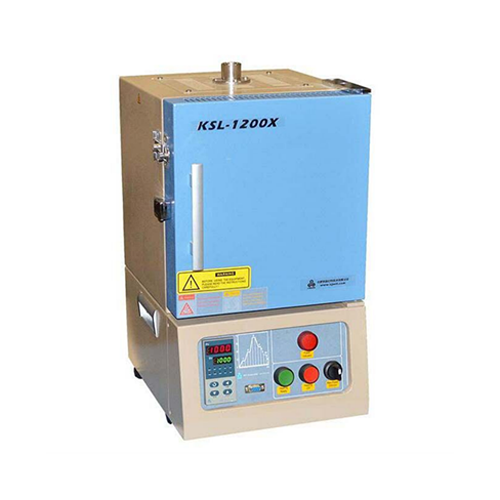

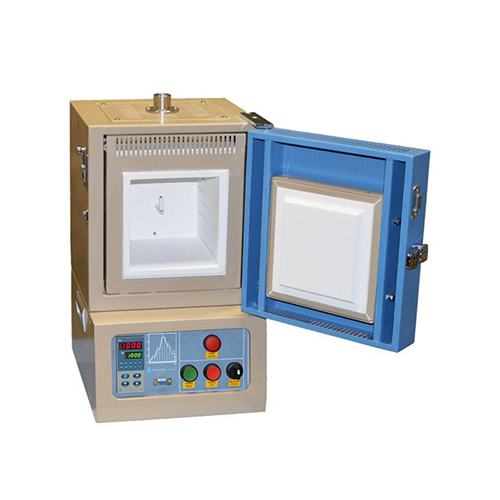

1200℃ Micro Box Furnace (4.2L)
1. Vacuum box furnace adopts high-precision temperature control system, and the temperature control accuracy can reach ±1℃
2. Vacuum box furnace adopts high-quality alumina insulation material, and the heat loss is low.
3. Vacuum box furnace has built-in high-efficiency resistance wire, uniform heating, fast heating rate, and saves operation time.
- Shenyang Kejing
- Shenyang, China
- 10 working days
- 50 sets
- Information
Introduction of High efficiency micro box furnace:
KSL-1200X-J High efficiency micro box furnace uses resistance wire as heating element, double-layer shell structure and 50-stage program temperature control, K-type thermocouple, and furnace chamber uses high-purity alumina fiber material. The maximum temperature of Micro box furnace can reach 1200 degrees, and the continuous working temperature can reach 1100 degrees. The temperature control accuracy is ±1 degree. High efficiency micro box furnace has the advantages of uniform temperature field, low surface temperature, fast temperature rise and fall speed, and energy saving. It is a suitable product for colleges and universities, scientific research institutes, industrial and mining enterprises to do high-temperature sintering, metal annealing, and quality inspection.
Main features of High efficiency micro box furnace:
·The furnace material of Micro box furnace is made of high purity alumina fiber, which can greatly reduce energy loss
·The furnace surface of Micro box furnace is coated with high temperature alumina coating imported from the United States to improve heating efficiency and service life
·The Micro box furnace has built-in air intake and exhaust ports to remove bad pollutants and moisture, extending the service life of heating elements and furnace.
·Vacuum box furnace has overheating and broken couple protection, and is equipped with door opening power off function.
·The Micro box furnace is heated on three sides, with fast heating rate and uniform temperature field.
Technical parameters of Vacuum box furnace:
| Product model | 1200℃ High efficiency micro box furnace (4.2L) KSL-1200X-J |
| Working principle | ·The Vacuum box furnace uses electric current to heat the heating element in the furnace, uses solid-state relays for circuit control, uses temperature sensors (thermocouples) to detect the temperature in the furnace, and the temperature detected by the thermocouple is fed back to the temperature control instrument. ·The intelligent temperature controller can set the heating process (heating speed). The instrument collects the furnace temperature signal fed back by the thermocouple and outputs a suitable voltage signal through PID adjustment. The solid-state relay receives the output signal of the instrument and controls its own on-off time to achieve the purpose of regulating the temperature in the furnace to stabilize, so that the high-temperature furnace is heated according to the heating process set by the temperature controller. |
| Open resistance wire furnace lining (optional) | Features: high heating rate and high working temperature ·Power supply: AC220V/50HZ ·Rated power: 2.5KW ·Heating zone size: 150L*155mmH*180mmD ·Temperature: Maximum operating temperature: 1200 degrees (≤30min) Working temperature: 1100 degrees ·Heating rate: ≤10 degrees/min (recommended heating rate, which is beneficial to the service life of the equipment) ·Heating element: resistance wire (molybdenum-doped iron-chromium aluminum alloy) |
| Buried resistance wire furnace lining (optional) | Features: low pollution, corrosion resistance. ·Power supply: AC220V/50HZ ·Rated power: 2.5KW ·Heating zone size: 150L*155mmH*180mmD ·Temperature: Maximum operating temperature: 1100 degrees (≤30min) Working temperature: 1000 degrees. ·Heating rate: ≤10 degrees/min (recommended heating rate, which is beneficial to the service life of the equipment). · Heating element: resistance wire (molybdenum-doped iron-chromium-aluminum alloy). |
| Temperature control system of High efficiency micro box furnace | ·Intelligent temperature controller. ·50-stage program temperature control. ·Thermocouple uses K-type thermocouple. ·Temperature control accuracy of Vacuum box furnace: ±1℃. |

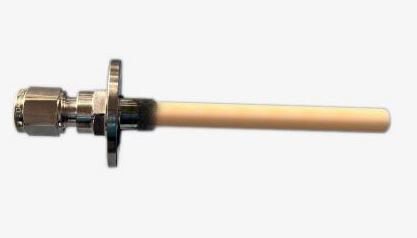

| Atmosphere of Vacuum box furnace | ·With air inlet, the air inlet is a φ6.35mm ferrule joint (and equipped with a 3-meter polytetrafluoroethylene tube). ·Air outlet, the air outlet is a φ30mm circular air outlet.
|

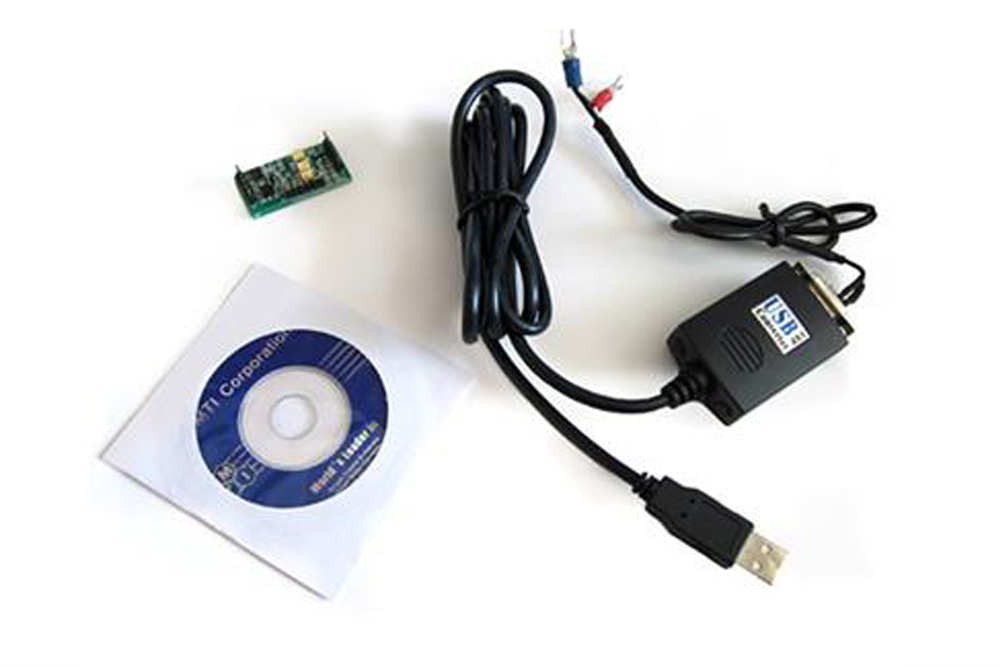

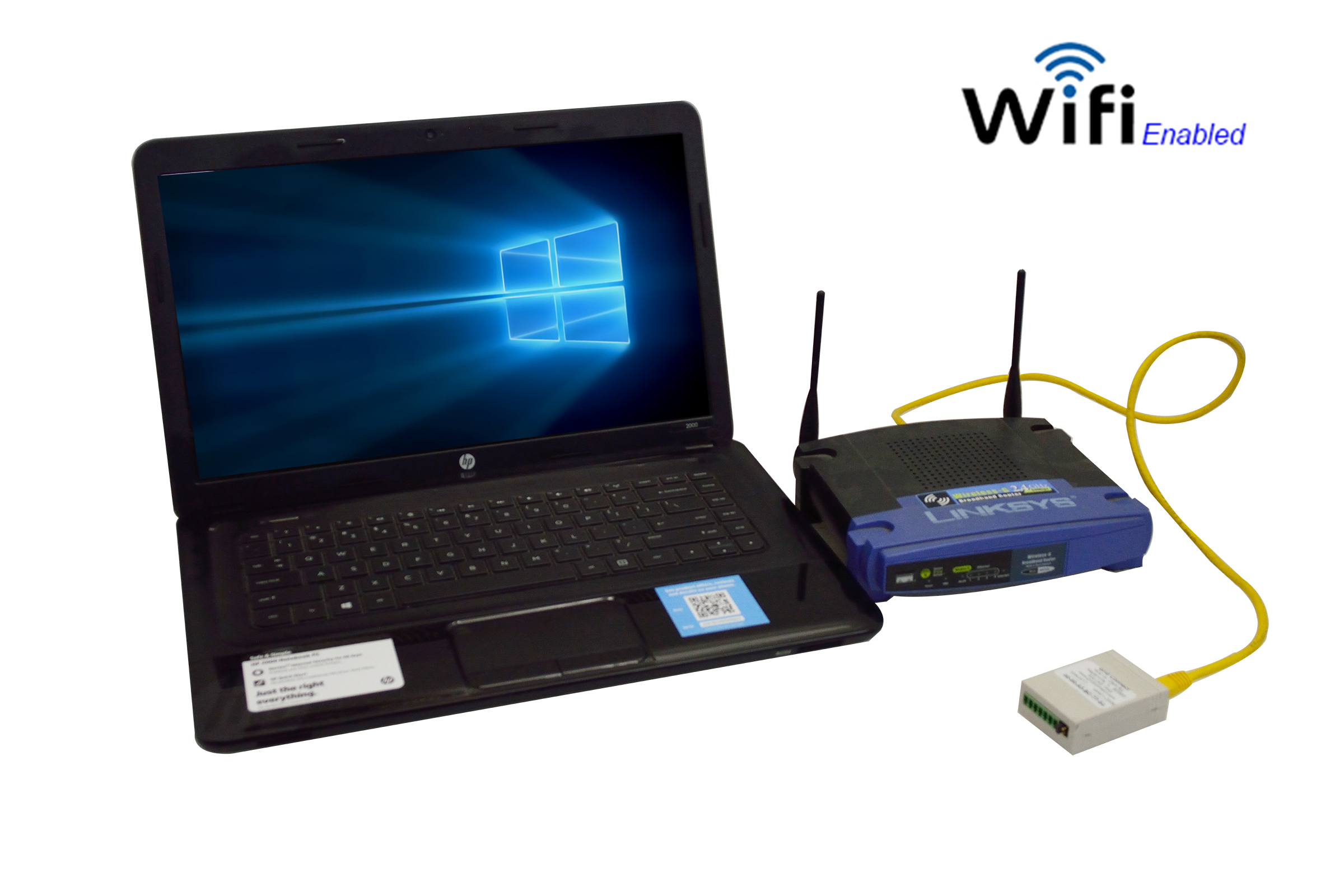

| Temperature control software of Vacuum box furnace | Optional computer temperature control software.
|
| Specifications of Vacuum box furnace | Dimensions: Not open: 310 length * 370 width * 535mm height Open: 310 length * 605 width * 535mm height; Weight: 28kg |
| Warranty period of Vacuum box furnace | Vacuum box furnace has 1 year (excluding pads, heating elements and other consumable parts) |
| Compliance | CE Certified, UL or CSA certification is available at extra cost. |
Specific precautions for high-temperature furnaces:
Regular inspection of Vacuum box furnace: Regularly check the equipment lines, ground wires, temperature measuring and temperature control devices, etc. to ensure that they are intact.
Stay away from flammable and explosive items: The heating equipment should be placed on a flame-retardant, fixed laboratory table and keep a safe distance from flammable and explosive items.
Dispose of waste in a timely manner: After the experiment is completed, iron oxide and other debris should be cleaned up in time to ensure that the furnace is clean.
Avoid opening the furnace door at high temperature: Open the furnace door after the temperature in the high-temperature vacuum tube furnace drops below 300 degrees to avoid damage to the furnace lining.
Do not use open flames: Open flame electric furnaces are prohibited in the laboratory.
Paint in time: If the furnace shell is found to be peeling, it should be repaired in time to prevent rust.
Pay attention to gas: The gas must be washed and dried before entering the furnace to prevent the furnace from rupturing.
Maintenance of High efficiency micro box furnace:
Regular cleaning: Regularly clean the dust and impurities in the furnace body and furnace.
Check the circuit: Regularly check the electric furnace circuit to ensure that the circuit is not aged.
Check the instrument: Regularly check the accuracy of the instrument.
Dehumidification of the furnace: For newly purchased or long-unused tubular furnaces, use waste zirconium blocks for 1-2 sintering operations to remove moisture from the furnace.
About us:
As a company with many years of experience in Micro box furnace R&D and manufacturing, we have a professional technical team, a complete quality management system and a modern production workshop, and can provide global customers with a full range of services from standard models to non-standard customization. Whether it is university research, material laboratories, or industrial mass production, we can provide accurate and efficient heat treatment solutions.
Our micro box furnaces have been exported to many countries and regions such as Europe, America, Southeast Asia, and the Middle East, and are widely praised by users. If you are looking for Micro box furnace equipment with strong stability and mature technology, please contact us for more technical information and quotation information.

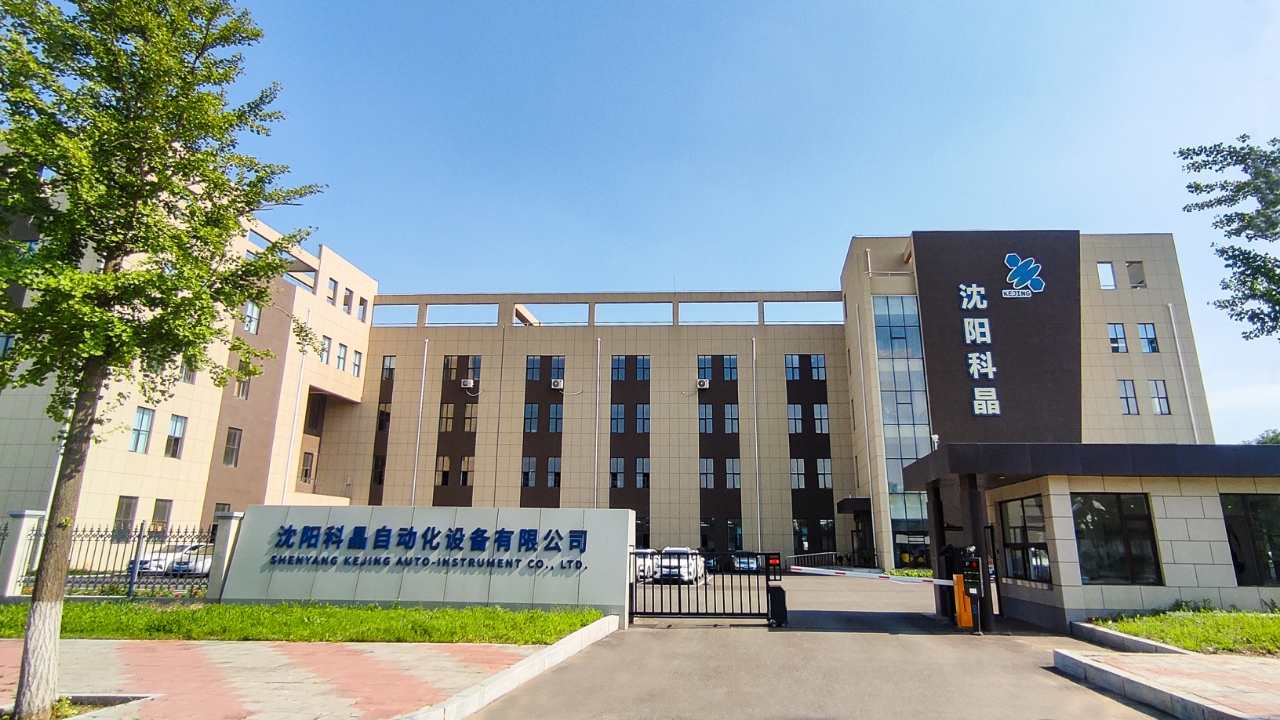

Shenyang Kejing Auto-instrument Co., Ltd. is a modern enterprise integrating R&D, design, production and sales. The company focuses on the development of high-temperature heat treatment equipment and automatic control systems, and has a professional technical team and independent core technology. Products cover multiple series such as Vacuum box furnaces, tube furnaces, tablet presses, coating machines, sintering furnaces, etc.
