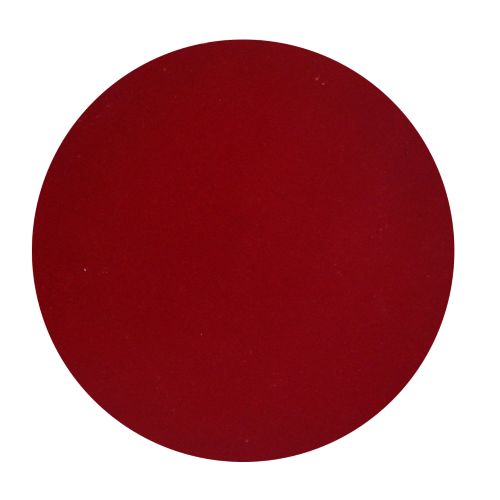

Soaking Up, Cushioning, Clearing—The Triple Role of Red Velvet Polishing Cloth

In materials research and industrial testing, getting a metallographic sample ready isn't just a chore—it's the make-or-break step before any real observation. And when it comes to that final polish, red velvet polishing cloth is a workhorse. It doesn't carry any abrasive on its own. Instead, its dense velvet pile does three essential jobs: holding onto polishing fluid, cushioning the sample, and sweeping debris away.

Soaking Up Polish

The surface of the velvet is covered with a dense layer of fine fibers, the length and density of which have been specifically engineered. The minute interstices between these fibers serve to trap abrasive particles and liquid media, effectively creating temporary "reservoirs." During the polishing process, as the polishing disc rotates, the stored polishing fluid is continuously released onto the sample surface, thereby retarding the migration of the fluid toward the periphery of the disc under the influence of centrifugal force.

Cushioning the Contact

The pile of golden velvet possesses a certain degree of elasticity and resilience, enabling it to form a buffer layer between the specimen and the polishing disc. When pressure is applied to the specimen, the pile undergoes slight deformation, which helps to mitigate localized stress concentrations and ensure a more uniform contact pressure. For brittle specimens—such as cemented carbides, ceramics, and coated materials—this buffering effect serves to reduce the risk of edge chipping.

Take coated carbide tools. The coating and the base material have very different hardness levels, which can lead to stepped wear at the interface if you're not careful. Red velvet's even pressure distribution lets abrasives reach both surfaces at once, keeping that transition smooth. Same goes for carbon fiber composites, where soft and hard phases sit side by side. The cloth's give helps it conform to those ups and downs, so one phase doesn't end up proud or recessed.

Clearing the Debris

During the polishing process, material removal generates a substantial amount of fine debris. If this debris remains trapped between the sample and the polishing pad, it acts as "loose abrasive particles" during subsequent polishing, thereby inflicting new scratches on the sample surface. The pile structure of the velvet fabric provides interstitial space to accommodate this debris; the particles flow along with the polishing fluid into the depths of the pile and are gradually carried away from the processing interface, preventing them from lingering at the interface for extended periods.

If you're polishing something with soft phases, like certain alloys, those soft bits shed material faster. Leave that debris on the surface, and it'll gouge the harder phases later on. The velvet's "storage" action keeps the working area clean, preventing that second-round damage.

Where It Works

Because of these three functions, red velvet polishing cloth is a go-to for certain final polishes:

Cemented Carbides: Tungsten-cobalt alloys are characterized by high hardness and inherent brittleness; consequently, conventional polishing cloths can easily cause the dislodgment of tungsten carbide particles. The cushioning properties and uniform pressure distribution of gold velvet help mitigate differential wear between the binder phase and the hard phase, thereby enhancing microstructural retention.

Coating Materials: Given the significant disparity in hardness between hard coatings and their substrates, the elasticity of gold velvet ensures uniform contact between the abrasive medium and the surfaces of both materials, resulting in a smooth and level interface.Non-ferrous metals (copper, aluminum, etc.): These are soft and prone to deformation. Red velvet, paired with fine abrasives, removes material gently, minimizing surface damage.

Carbon-fiber composites: The cloth's flexibility lets it follow the contours of different phases, delivering an overall flat result.

Shenyang Kejing Red Velvet Polishing Cloth

Shenyang Kejing has spent over two decades in the lab equipment space. Their red velvet polishing cloth uses high-quality velvet—soft, dense, and balanced—to deliver exactly these three functions: fluid retention, cushioning, and debris clearance. The backing is a pressure-sensitive adhesive that stands up to water, oil, and alcohol, so it sticks firmly to UNIPOL series polishers and other platens without peeling or slipping during long runs.

Sizes range from 70mm to 381mm, covering everything from benchtop lab units to industrial machines. And the adhesive layer holds up—no curling at the edges, no release, even after hours of work with fluids.
