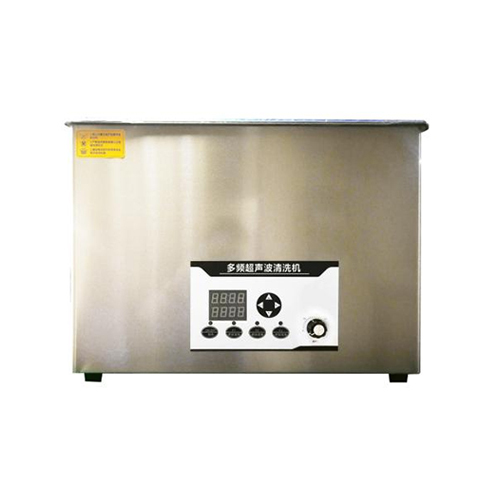

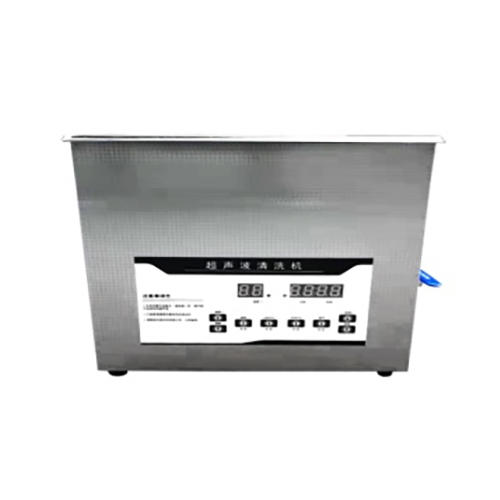

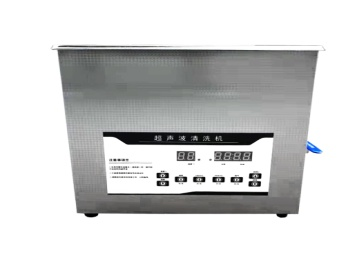

VGT-300DD Ultrasonic Cleaner
1. Our large capacity digital ultrasonic cleaner features a spacious 30-liter capacity, 600W of adjustable power, and a precise operating frequency of 40 kHz.
2. This large capacity digital ultrasonic cleaner is specifically designed for laboratory glassware, precision electronic components, semiconductor wafers, and mechanical hardware, offering a non-destructive yet highly efficient cleaning solution utilizing the cavitation effect.
3. With over two decades of deep expertise in the industry, we offer a comprehensive suite of end-to-end laboratory solutions—ranging from core equipment to accessories. Should you have any specific requirements beyond our standard offerings, we are fully equipped to provide customized solutions tailored to your needs.
- Shenyang Kejing
- Shenyang, China
- 22 working days
- 50 sets
- Information

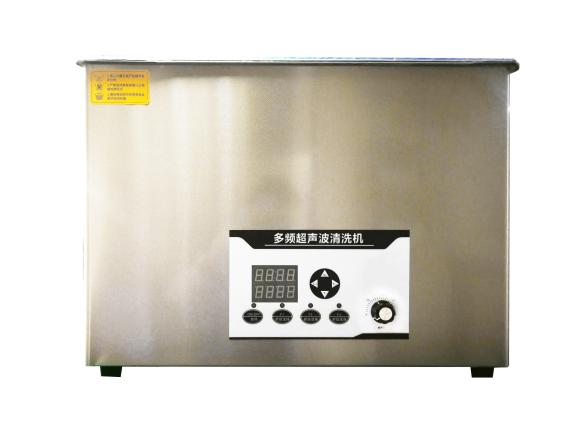

Introduction of the Digital Ultrasonic Cleaning Bath:
The VGT-300DD digital ultrasonic cleaning bath is designed for cleaning items such as eyeglasses, jewelry, and watches.
This digital ultrasonic cleaning bath finds wide application across various sectors, including mechanical engineering, textiles, electronics, chemical fibers, petrochemicals, pharmaceuticals, higher education institutions, scientific research laboratories, super-hard materials manufacturing, and the defense industry. It is capable of cleaning areas inaccessible to standard manual tools, thereby achieving a thorough, damage-free cleaning result.
Technical Specifications for the Laboratory Ultrasonic Cleaning Equipment:
| Product Name | VGT-300DD Large capacity digital ultrasonic cleaner (Digital ultrasonic cleaning bath) |
| Product Model | VGT-300DD |
| Main Specifications of Industrial ultrasonic cleaner | 1. Power Supply of industrial ultrasonic cleaner: 220V, 50Hz 2. Ultrasonic Power of industrial ultrasonic cleaner: 600W (10 adjustable levels) 3. Frequency: 40KHz 4. Heating Power: 500W 5. Heating Temperature: Room Temperature – 80°C 6. Time Setting: 1–99 min 7. Capacity: 30L 8. Drainage: Included |
9. Dimensions of industrial ultrasonic cleaner: · Size: Packaging Dimensions: L630 × W430 × H430 (mm) Machine Dimensions: L580 × W330 × H375 (mm) Inner Tank Dimensions: L500 × W300 × H200 (mm) Weight: 15 kg | |
| Compliance of industrial ultrasonic cleaner | CE Certified, UL or CSA certification is available at extra cost. |
Key Features of the Ultrasonic Cleaner with Heat Control:
· The housing of this ultrasonic cleaner with heat control is crafted from high-quality stainless steel plating, offering a sleek and elegant aesthetic.
· The large capacity digital ultrasonic cleaner features a stainless steel mesh basket formed via argon-arc welding, designed to enhance cleaning efficiency.
· The large capacity digital ultrasonic cleaner is constructed from high-grade stainless steel using a single-piece stamping process; being seamless and weld-free, it offers superior water-tightness and leak resistance.
· Digital ultrasonic cleaning bath boasts high ultrasonic power conversion efficiency, delivering robust power output and exceptional cleaning performance.
· This Industrial ultrasonic cleaner can be utilized for a wide range of applications, including cleaning, degassing, sterilization, emulsification, mixing, displacement, and extraction.
· The industrial ultrasonic cleaner offers a broad scope of application, suitable for cleaning items such as electronic products, mechanical hardware components, eyeglasses, jewelry, watches, coins, fruits, and more.
Analysis of Core Technical Advantages:
1. 40 kHz "Golden" Cleaning Frequency: This frequency generates tens of thousands of microscopic bubbles within the liquid; harnessing the "cavitation effect," it produces immense instantaneous pressure capable of penetrating deep into blind holes and crevices to dislodge stubborn stains, all without causing damage to the surfaces of precision components.
2. 10-Level Adjustable Power (Max. 600W): A unique power adjustment feature allows users to select the optimal vibration intensity based on the material of the object being cleaned—ranging from delicate items like eyeglasses and jewelry to robust mechanical hardware—thereby providing a comprehensive cleaning spectrum from gentle to powerful.
3. Industrial-Grade 304 Stainless Steel Construction: The inner tank is precision-formed from high-quality stainless steel using argon arc welding. Highly resistant to corrosion and high temperatures, it supports sustained, high-intensity operation while maintaining a laboratory-grade environment of exceptional cleanliness.
4. Intelligent Heating and Temperature Control System: The wide-range heating function (from room temperature up to 80°C) significantly enhances the chemical activity of the cleaning solution, accelerating the breakdown of grease and wax residues to effectively shorten the overall cleaning cycle.
