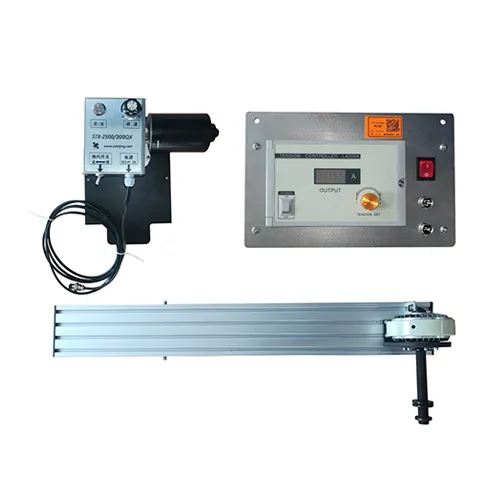

STX-2500, 600/1203 Series Electric Thread Feeder
1. This product is compatible with STX-604, 605A/B, and STX-1203A/B series diamond wire EDM machines and can be purchased as a set.
2. The entire cutting system features an automated wire feed design, improving sample cutting speed and reducing unnecessary experimental time.
3. This laboratory cutting auxiliary equipment allows for switchable clockwise/counterclockwise operation, and the speed can be adjusted according to your needs.
- Shenyang Kejing
- Shenyang, China
- 22 working days
- 50 sets
- Information
Introduction of Electric Winder for Cutting Machines:

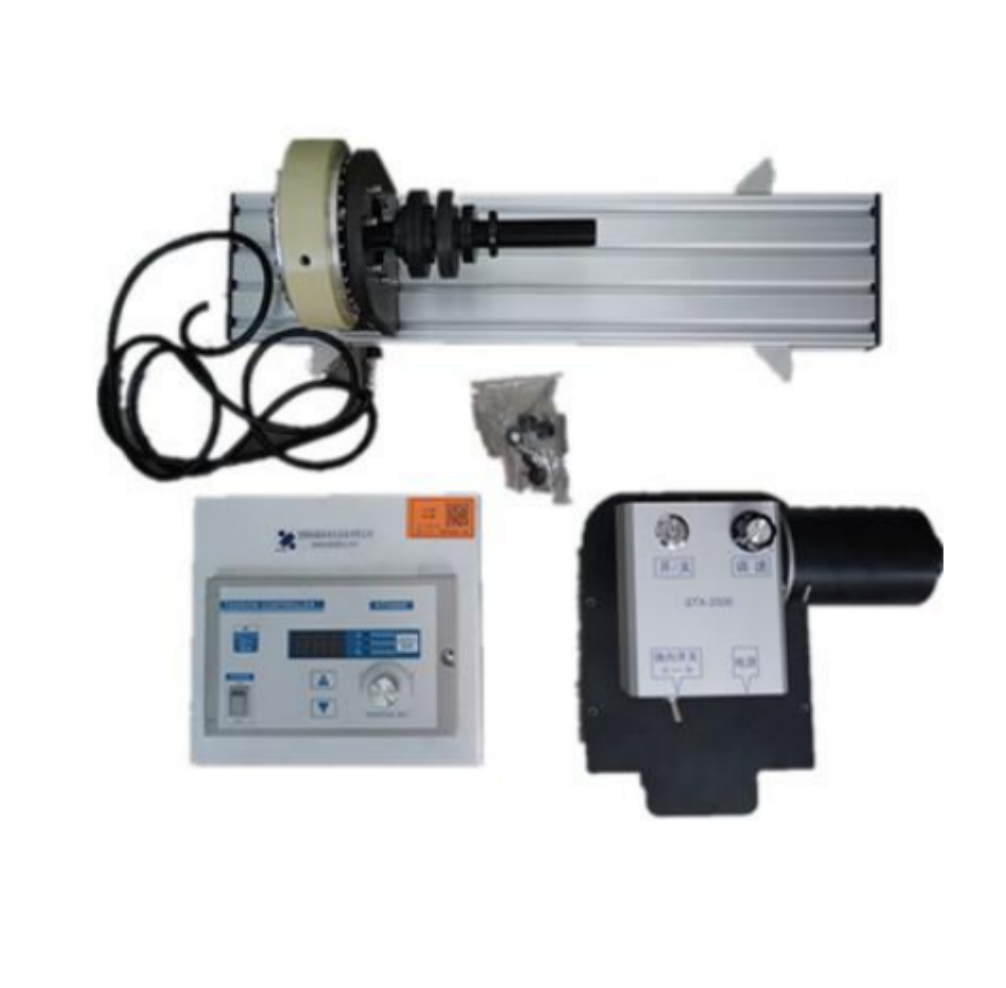

The STX-2500 series 600/1203 electric winder for cutting machines is suitable for STX-604, 605A/B, and STX-1203A/B series diamond wire cutting machines. This product uses a low-speed, high-torque motor to drive the wire winding drum. It can rotate clockwise/counterclockwise with adjustable speed. The electric magnetic powder damper controls rotational resistance through a constant pressure mode. When using the electric thread feeder for STX cutting machines, install the drive motor along with the mounting plate on the drive side of the wire winding drum handle (remove the original mounting plate). The magnetic powder damper is fixed to the side of the equipment. Install the spool, thread the wire, and the machine will automatically feed the wire. It boasts high feeding efficiency, uniform wiring, and good pre-tensioning.
Technical parameters of STX cutting machines accessories:
| Product Name | STX-2500 Series 600/1203 Electric Cable Loader |
| Product Model | STX-2500 Series 600/1203 |
| Installation Requirements | 1. Temperature and Humidity: 10-85%RH (at 25℃, non-condensing); Temperature: 0-45℃. 2. No strong vibration sources or corrosive gases around the equipment. 3. Power Supply: National standard three-pole socket AC220 50Hz 10A, must have a good grounding wire. |
| Technical Specifications | 1. Cable feeder drive motor parameters: DC24V 80W 30r/min 2. Cable feeder driver power supply: Power adapter: OUT DC24V 5A 3. Magnetic powder damper parameters: 0-6NM 4. Magnetic powder damping control method: Controller adjustment range: 0-24 (constant voltage mode) 5. Magnetic powder damping controller power supply: AC220V 50HZ 6. Cable feeder drive motor dimensions: 250×150×150mm 7. Cable feeder drive section weight: 3Kg 8. Magnetic powder damper section dimensions: 240×150×1140mm 9. Magnetic powder damper section weight: 7Kg |
| Note: The equipment is powered by the national standard AC220V 50Hz power supply. The actual power supply should be based on the parameters on the label on the back of the product. |
We also offer other specifications:
Shenyang Kejing has another auxiliary device suitable for 100QX and 200QX diamond wire cutting machines: click here to view.
About Us:
1. We have an experienced mechatronics R&D team specializing in wire take-up and tension control. We have independently mastered core constant-voltage electromagnetic powder damping control technology, ensuring uniform wire routing and excellent pre-tension, effectively improving cutting precision and yield.
2. We are committed to the automation transformation and upgrading of traditional processing equipment, providing complete solutions from mechanical structure design to electrical control system programming, significantly reducing manual intervention and improving efficiency.
3. With a deep understanding of diamond wire cutting technology, we customize peripheral auxiliary equipment specifically for mainstream cutting machine models such as the STX series.
