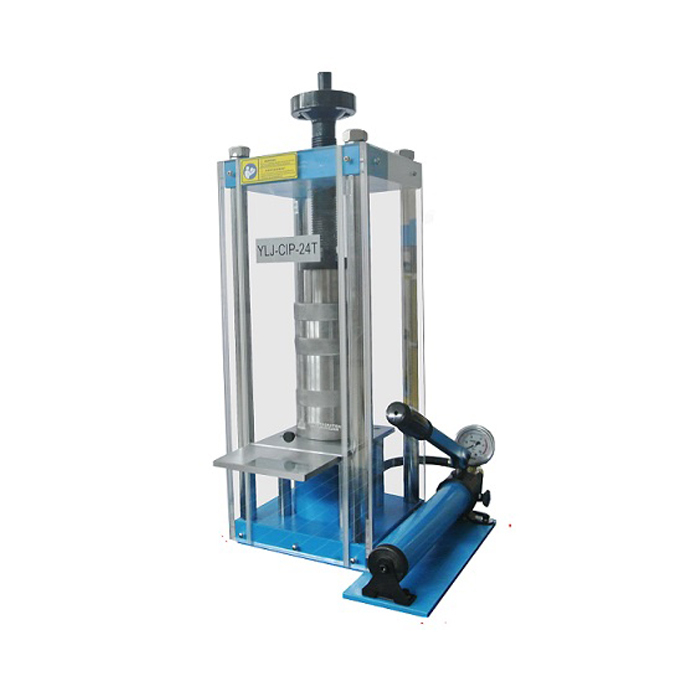

Manual Cold Isostatic Press Series

CIP Series Compact Cold Isostatic Press is to place the product in a tightly closed container filled with liquid, and manually apply pressure to make each surface of the sample receive equal pressure. Under the high pressure environment, the density of the product increases and the gap between sample particles becomes smaller and the desired shapes are obtained. With the advancement of science and technology, isostatic presses are more and more widely used in the forming of powder metallurgy, composite materials, refractory materials, ceramics, cemented carbide / high-strength alloy and other materials.

Brand: Shenyang Kejing
Product origin: Shenyang, China
Delivery time: 22 working days
Supply capacity: 50 sets

Information

Product Introduction
The CIP series manual cold isostatic press is a pressure device that combines a CE-certified split-type hydraulic press with a high-strength alloy hydraulic mold. It is widely used in the forming and preparation of materials such as powder metallurgy, composite materials, refractory materials, ceramics, and hard alloys.

The working principle of the equipment is as follows: the sample to be formed is placed inside the cavity of a high-strength alloy mold filled with liquid. By manually applying pressure, the sample is subjected to uniform isostatic pressure on all surfaces. Under high pressure, the density of the material increases, particle gaps are reduced, and the desired shape is formed.

This series of manual cold isostatic presses features easy operation, convenient transport, and simple cleaning and maintenance. Users can select different models according to the sample size, required pressure, and target pressure value.

With the continuous advancement of technology and the deepening of powder material research, the cold isostatic press has become an essential laboratory instrument for universities and research institutes engaged in small-scale material sample studies.

Main Features

1. This series adopts manual pressurization, featuring simple operation, safety, and reliability.
2. It uses a pointer-type pressure gauge for a more intuitive operation and clearer display.
3. With a compact structure, high pressure capacity, and excellent cost performance, this series is well-suited for use in various laboratory environments.

Technical Parameters

Product Name	CIP Series Manual Cold Isostatic Press
Product Model	CIP-22M, CIP-30M
Technical Parameters (Specification)	model	CIP-22M	CIP-30M
	Structure Type	Separate Type (Split Design)	Separate Type (Split Design)
	Rated Press Range	0–15 tons (max)	0–24 tons (max)
	Pressure Gauge Display Range	20 MPa (max)	35 MPa (max)
	Outer Dimensions of Isostatic Mold	Φ88 mm × 265 mm (Note: height includes upper punch)	Φ97 mm × 285 mm (Note: height includes upper punch)
	Inner Chamber Size of Isostatic Mold	Φ22 mm × 120 mm	Φ30 mm × 167 mm
	Isostatic chamber	Ø22mm×70mm	Ø30mm×110mm
	Maximum Isostatic Mold Pressure Value	12 tons (300 MPa)	22 tons (300 MPa)
	Maximum Allowable Pressure Value of Press	16 MPa	32 MPa
	Pressurization Method	Manual Lever	Manual Lever
	Display Method	Analog Pressure Gauge (Unit: MPa)	Analog Pressure Gauge (Unit: MPa)
	Net Weight	Press: ≈40 kg Mold: ≈8 kg	Press: ≈100 kg Mold: ≈12 kg
	Press Dimensions (L×W×H)	260 mm × 160 mm × 550 mm	260 mm × 240 mm × 650 mm
	Note: 1. All models of the manual cold isostatic press are supplied as a matched set consisting of a hydraulic mold and a press, with all parameters precisely aligned. It is strictly forbidden to exceed the maximum pressure rating of the isostatic mold, or to interchange presses and molds of different models or from other manufacturers. Improper use may result in equipment damage or personal injury. 2. For cold isostatic presses requiring higher pressure ranges of 400–500 MPa, please contact our sales department.
