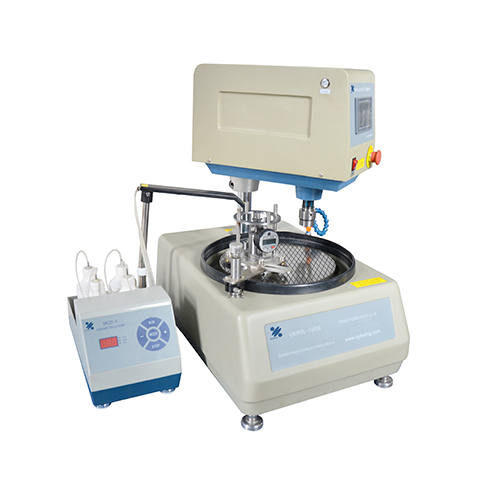

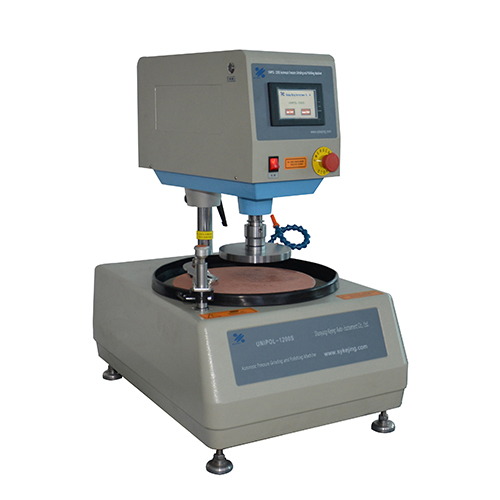

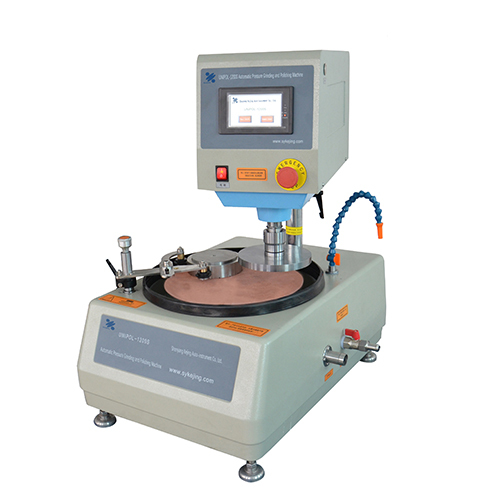

Lapping And Polishing Machine With Center Pressure
UNIPOL-1200S Automatic Pressure Grinding and Polishing Machine is mainly used in the field of material research, and is widely used laboratories of universities and research institutes for automatic grinding and polishing samples of metal, ceramics, glass, infrared optical materials (such as zinc selenide, zinc sulfide, silicon, germanium), rock samples, mineral samples, composite materials, organic polymer materials, etc. UNIPOL-1200S automatic pressure grinding and polishing machine adopts mechanical pressure method, which can make the sample under a constant pressure during the grinding process.
- Shenyang Kejing
- Shenyang, China
- 22 working days
- 50 sets
- Information
Product Introduction
The UNIPOL-1200S Automatic Pressure Grinding and Polishing Machine is primarily designed for material research applications. It is widely used in universities, research institutes, and laboratories for the automatic grinding and polishing of various materials, including metals, ceramics, glass, infrared optical materials (such as ZnSe, ZnS, Si, Ge crystals), rock and mineral samples, composite materials, and organic polymers. It is also suitable for small-scale production in factories.
The UNIPOL-1200S adopts a mechanical pressure-loading system, ensuring that samples are subjected to a constant and uniform pressure during the grinding and polishing process. The machine is equipped with a mechanical arm polishing station, enabling it to perform high-pressure grinding and polishing of superhard materials, as well as gentle, controlled processing of cleavable or fragile materials. This design significantly expands the versatility and application range of the equipment.
Additionally, the UNIPOL-1200S allows users to preset grinding and polishing time; once the set duration is reached, the system automatically stops operation, enabling unattended or automated processing for improved efficiency and safety.
Main Features
1. Specially equipped with a mechanical arm grinding and polishing work station
2. With central loading pressure, the pressure is stable and reliable.
3. Excellent performance, simple operation and wide application range.
Technical Parameters
Product Name | UNIPOL-1200S Automatic Pressure Grinding and Polishing Machine | |
Product Model | UNIPOL-1200S | |
Installation Conditions | 1. Temperature and humidity: 10-85%RH (at 25℃ without condensation) Temperature: 0-45℃. 2. There is no strong vibration source and corrosive gas around the equipment. 3. Power supply: Single phase: AC220V 50Hz 10A (the socket must have a good safety protection grounding wire). 4. Cooling water: The equipment is equipped with an inlet and a drain, and you need to connect the tap water and drainage pipeline by yourself. 5. Air source: No requirement for standard equipment. 6. Workbench: It is recommended to use it on an operating table or desktop with a load of more than 150kg. 7. Ventilation device: Good ventilation environment, no special ventilation device requirements are required. 8. Auxiliary equipment (purchased separately): Recommended: 1. HEATER-3040 or 250 heating platform. 2. SKCH-1（A）precision thickness gauge. 3. GPC-80A/100A Precision Grinding and Polishing Controller (Mechanical Arm) 4. SZKD-series dripper. 5. SKCS-1 blow dryer. | |
Main Parameters (Specification) | 1. Power Supply Port: AC 220V, 50Hz 2.Total Power: 550W 3. Grinding/Polishing Disc Diameter: Φ300 mm 4. Quick-Mount Sample Holder Diameter: Φ160 mm 5. Gravity Sample Holder Diameter (Flat): Φ105 mm 6. Lower Swing Station (Oscillating Mechanical Arm): 1 station 7. Upper Plate Main Drive Motor: DC 110V, 90W (gear motor) 8. Lower Plate Main Drive Motor: DC 110V, 400W 9. Upper Sample Holder Rotation Speed: 10–80 rpm (adjustable) 10. Lower Grinding/Polishing Disc Rotation Speed: 20–240 rpm (adjustable) 11. Upper Sample Holder Pressure Range: 0.5–20 kg (adjustable setting) 12. Control System: PLC controller + touch screen | |

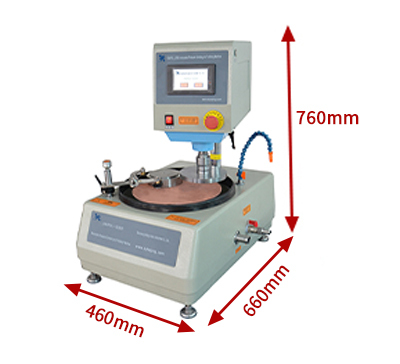

Product Dimension and Weight | ·Dimension: 460mm×660mm×760mm; ·Weight: 95kg |
|
Standard Accessories
No. | name | qty | picture |
1 | Cast Iron Polishing Plate | 1 pcs |
|
2 | Cast Aluminum Polishing Plate | 1 pcs | |
3 | Sample Holding Plate | 1 pcs | |
4 | Gravity Sample Plate | 1 pcs |
|
5 | Condition Ring | 1 pcs |
|
6 | Magnetic Sheet | 2 pcs | |
7 | (Steel) Lapping Buffer Sheet | 2 pcs | |
8 | Sandpaper (240#, 400#, 800#, 1500#) | 2 pcs each | |
9 | Polishing Pad (Nubuck Leather, Synthetic Leather, Polyurethane) | 1 pcs each |
|
10 | Diamond Polishing Paste (W2.5) | 1 pcs |
|
Optional Accessories
No. | name | functional type | picture |
1 | SKZD-2 Slurry Feeder | (optional) |
|
2 | SKZD-3 Slurry Feeder | (optional) | |
3 | SKZD-4 Automatic Slurry Feeder | (optional) | |
4 | SKZD-5 Slurry Feeder | (optional) | |
5 | YJXZ-12 Stirring Circulation Pump | (optional) | |
6 | Precision Thickness Gauge | (optional) | |
7 | GPC-80A Precision Polishing Controller | (optional) | |
8 | Ceramic Lapping Plate | (optional) | |
9 | Glass Lapping Plate | (optional) | |
10 | Magnetic resin diamond polishing disc | (optional) | |
11 | Wax-free lapping plate | (optional) | |
12 | Peach-shape hole sample holding plate (φ105mm) | (optional) | |
13 | Special fixture for UNIPOL-1200S pressure lapping machine | (optional) |
|
Warranty
· One year limited with lifetime support (not including rusted parts due to inadequate storage conditions)
